Long Bracket for 8 mm slot 40x40 profile

Assembly systems and components

Ask for a quote Receive Documentation Contact the supplier

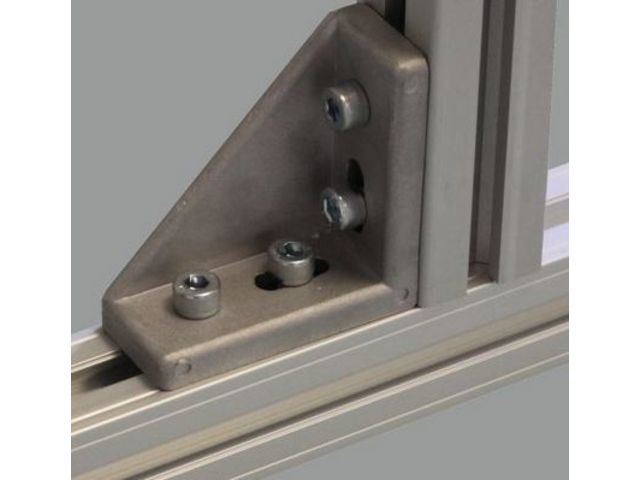

Long Bracket for 8 mm slot 40x40 profile

Long brackets offer better rigidity for heavy loads.

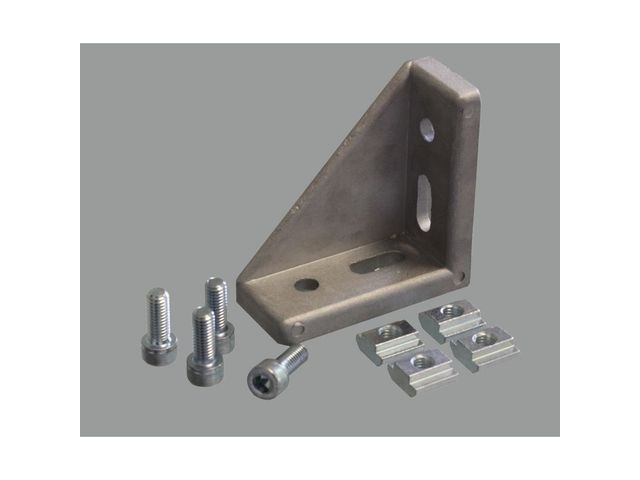

Optional fixings :

- 4 M6 screws

- 4 M6 T-nuts for 8 mm slot

Optional fixings for 40x40 slot 8 mm profiles :

- 4 screws ref : VIS-CBM8-20

- 4 nuts ref : ECR-P8-8-TPM

Optional fixings for 40x40 slot 10 mm profiles :

- 4 screws ref : VIS-CBM8-20

- 4 nuts ref : ECR-P10-8

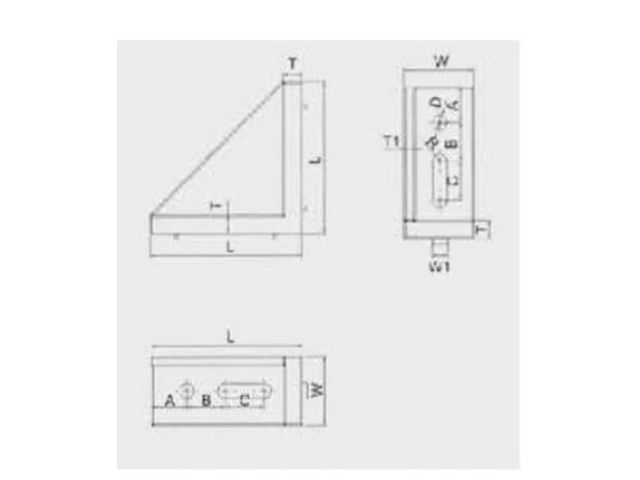

Dimensions in mm (see drawing) :

L = 80

T = 10.5

T1 = 6

W = 36

W1 = 8

A = 20.5

B = 23

C = 14.5

D = 8.5

R = 4.25
