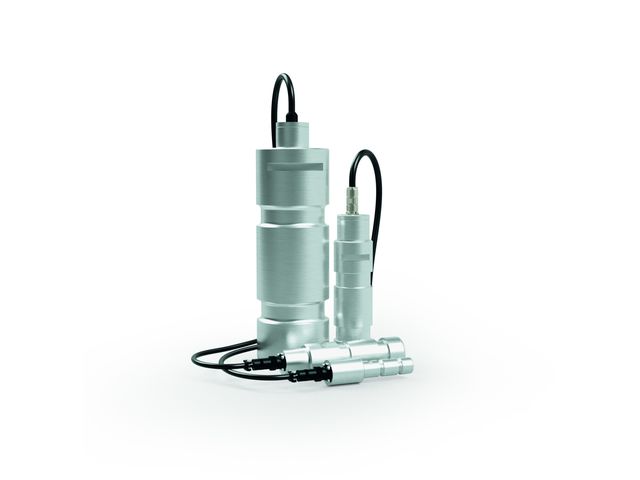

LE-LU Series | Load Measuring Pins

Shear force sensor

“ Load Measuring pins available in numbers of standard models with measuring capacities from 2.5 to 1250 kN (and up to 2500 kN in special version). ”
Ask for a quote Receive Documentation Contact the supplier

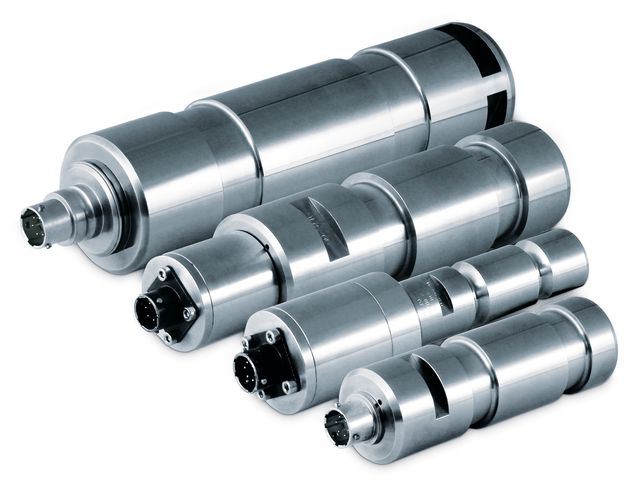

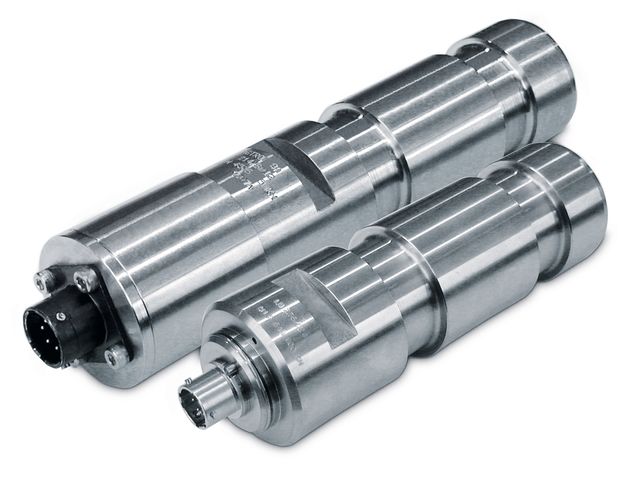

Magtrol Load Measuring Pins are used to measure load and force, and provide overload protection. The pins are mounted into machines in place of normal shafts and fitted with strain gauges, allowing them to produce a signal proportional to the measured load. Manufactured in Switzerland, Magtrol’s LE/LU Series Load Measuring Pins are rugged with high resistance stainless steel and tight construction. Available in several standard ranges from 2.5 kN to 1250 kN, their operation remains trouble-free and reliable even in electromagnetically difficult environmental conditions.

When forces acting on mechanical constructions are measured, the additional equipment required can often be costly and difficult to install. Magtrol Load Measuring Pins offer an excellent solution since they act as a direct element in the assembly, replacing a non-instrumented pin or shaft. LE/LU Series Load Measuring Pins are used for measuring loads and overload protection on cranes, hoisting gear, elevators and winches. The integrated electronics makes them ideal for applications in which separate signal conditioning is difficult to install and where the monitoring electronics are positioned at extended distances.

Temperature-compensated transducers with strain gauges in full-bridge configuration. On request, available with double bridge redundant. Available in several standard ranges from 2.5 kN to 1250 kN (0.28 tf to 140.5 tf). Electronics for transmission over great distances Built-in test equipment (B.I.T.E.) included on LE 410 series & LE 610 series. Complies with Safety Standards ISO 13849-1 and IEC 62061. EMC execution for reliable trouble-free operation. Rugged design corresponding to the quality characteristics of LB 210 series. Insensitive to external mechanical and chemical effects & Ideal for use in hostile environments. Simple installation for cost-saving solutions to construction problems. Calibrated Output: 0–10 VDC (LU); 4–20 mA (LE).
Download the complete technical features

Cranes Hoisting gear Elevators Winches Offshore & Marine
