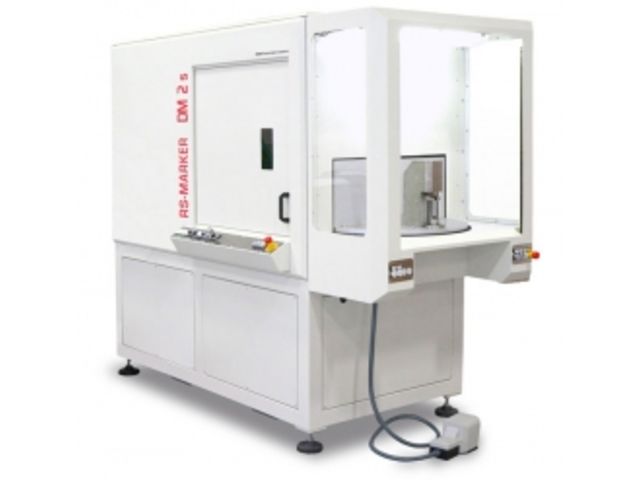

LASER Marking : DM 2

A LASER marking station with masked loading on the rotating table. It has the following characteristics:

a base in electro-welded bent plate, RAL 9002 painted, with an integrated electrical control board.

Certified as “Class 1 LASER welding system” for Nd:YAG ?=1064nm or CO2 ?=10.6 ?m sources in accordance with the laws in force regarding the safety of LASER emissions (EN 12100-1, EN60825).

An electromechanical globoid-cam rotating table in aluminium (Alcoa), with two stations (diameter: 700 mm) and 300 mm high separators. Each station has threaded holes and pins for the rapid and precise fixing of the positions of the components. The absolute precision of the fixing of the positions of the components is higher
than 50 ?m; the repeatability, higher than 10 ?m.

Frontal access for the operator with a 850 mm table plane. Manually operated lateral access to the horizontal door. Inspection window, on the lateral door, filtered for LASER emissions.

These machines, ideal for prototyping and mass production of small and precise components, can be equipped with a series of specific accessories for LASER marking: rotating axes, visual systems or controlled axes.
