All you need to run your factory !
“ ‧ Intel® Alder Lake CoreTM i3-N305 processor 15W with 8 E-Cores or Atom® x7425E ‧ Up to 16GB DDR5-4800 SODIMM ‧ -25 °C to 70 °C rugged wide temperature operation ‧ 4x GbE ports PoE+ / 4x USB3.2 Gen 2 with screw-lock ‧ M.2 2280 M key SATA socket ‧ DP++ / HDMI 1.4b dual display outputs ‧ 4-CH isolated DI + 4-CH isolated DO ‧ Front I/O access DIN-mounting design ‧ MezIO® compatible ”

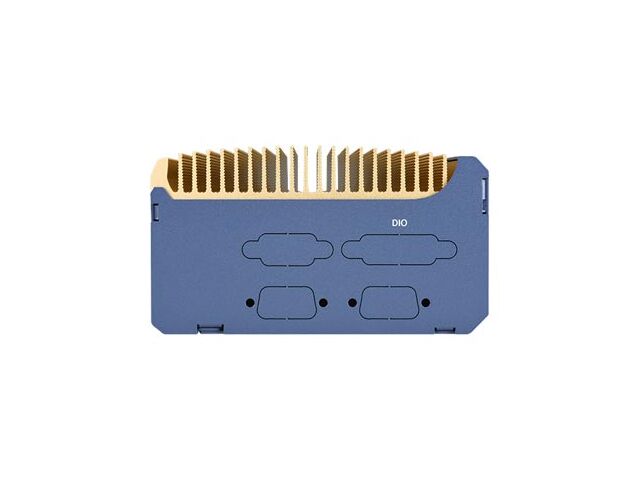

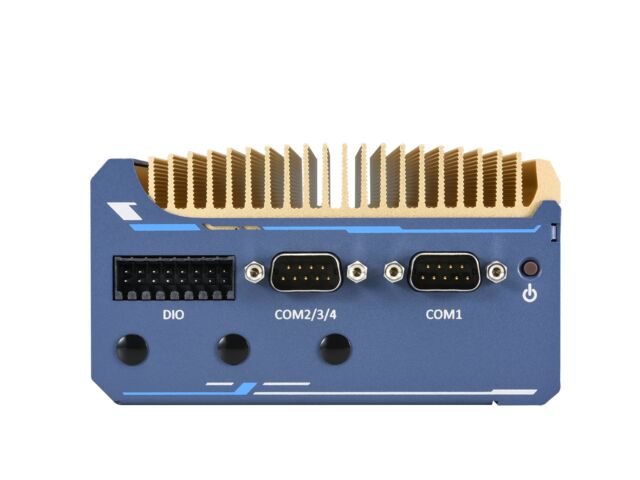

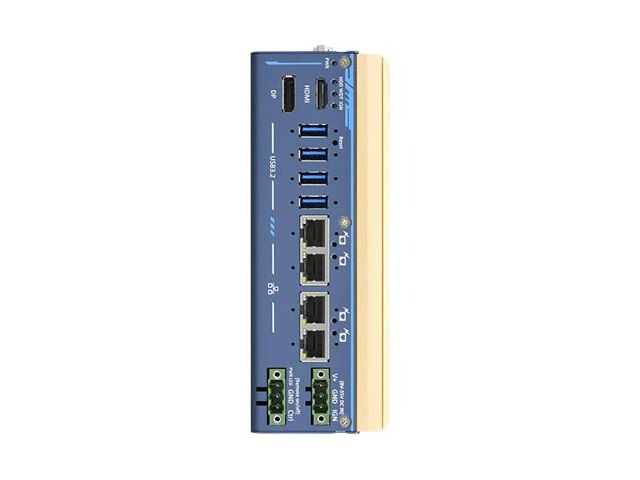

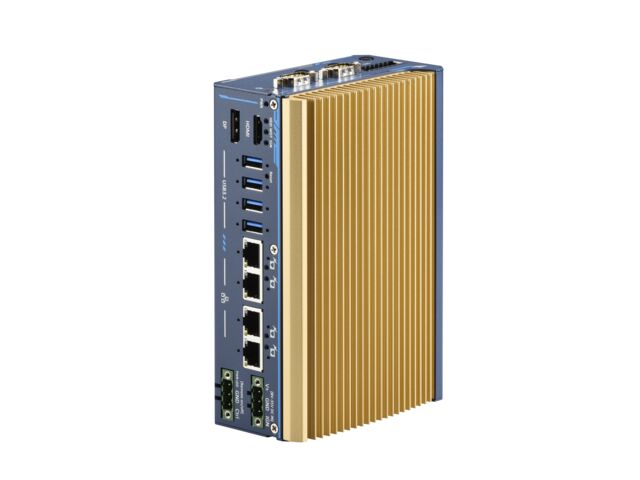

Neousys POC-700 is powered by Intel's Alder Lake i3-N305 featuring 8-core/ 8-thread processor with 32EUs UHD Graphics or Atom® x7425E featuring 4-core/ 4-thread with 24EUs UHD Graphics to support Intel OpenVINO™ for AI inference capabilities. The systems adopts DDR5-4800 to offer up to 1.8x the memory bandwidth over DDR4 to boost overall system performance. It also has four USB3.2 Gen2, and four GigE PoE+ ports with screw lock mechanisms to connect and secure industrial cameras for machine vision applications. Display output wise, there are HDMI and DP video outputs to support high-definition display devices. As for connections and expansions, POC-700 features isolated DIO for device monitoring/control, M.2 2280 M key for SATA SSD and a mini-PCIe socket for wireless WiFi, LTE/5G or CAN bus device.
