Electric insulator

Ask for a quote

Presentation

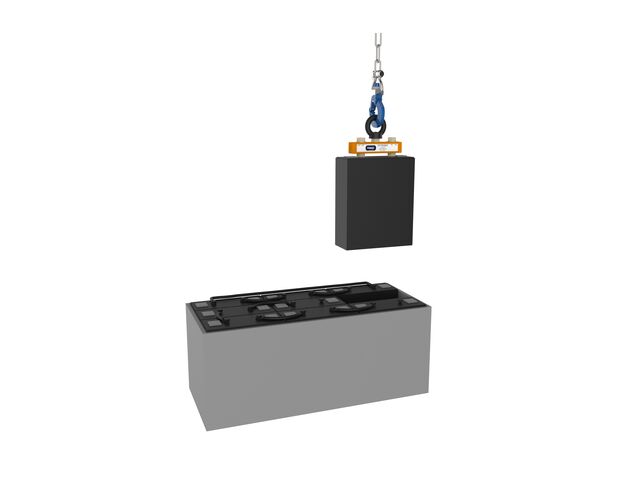

The EXTRABAT is a device specifically designed for battery installation and removal operations on electrically or hybrid-powered vehicles and machinery. Its main objective is to ensure safety during these operations, by avoiding contact with conductive parts and using insulating materials.

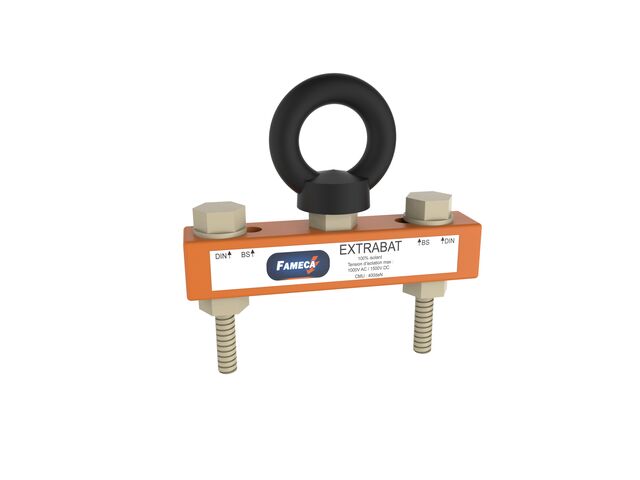

EXTRABAT features include an extraction section made entirely of insulating composite materials, and a fully insulated lifting ring. This ensures that no conductive parts come into direct contact with the battery, reducing the risk of electrocution.

The device is compatible with various battery mounting widths, with a center distance of 83.5 mm (BS) or 108 mm (DIN). It is supplied with a pair of M10 insulating screws with a 22 mm hexagonal head, and two M10 locknuts also with a 22 mm hexagonal head.

The EXTRABAT has a maximum payload of 400 kg and dimensions of 150 x 153 x 37 mm. It is lightweight, weighing just 0.4 kg, making it easy to handle during battery installation and removal operations.

A HEFMT90U cover is available as an option, providing extra protection for the EXTRABAT when not in use.

The EXTRABAT is therefore an essential tool for professionals working with electric or hybrid-powered vehicles and machinery, ensuring safe handling of batteries and contributing to the prevention of electrical accidents.

Technical features

No conductive parts : the extraction part of the device is made of fully insulating composite materials, and the lifting ring is completely insulated. 1 pair of M10 insulating screws, hexagonal head 22 mm 2 M10 lock nuts, 22 mm hexagonal head Maximum working load : 400 kg Dimensions : L x W x H :150x153x37
