Industrial oven, stacked trays/Four industriel, à plateaux/ Industrieofen, Stapeln v. Tablaren

Vertical Oven

Ask for a quote

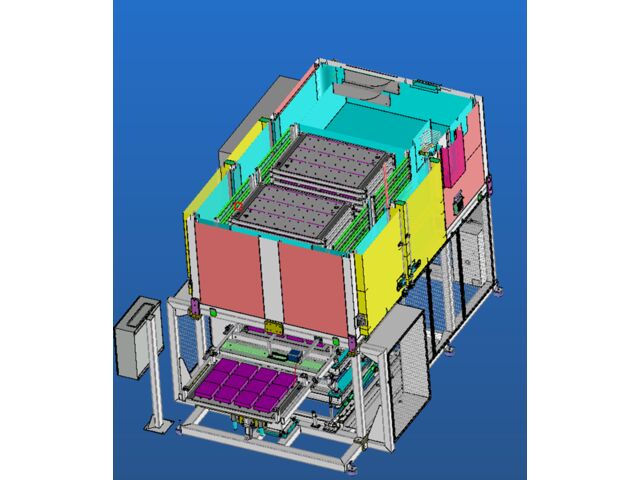

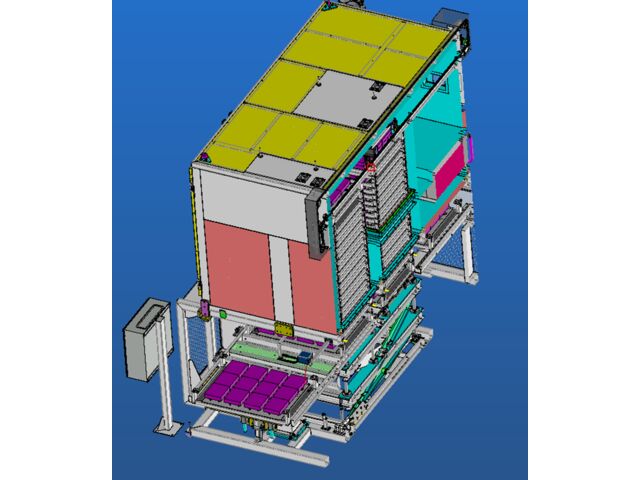

Presentation

- A welded tubular steel structure
- A 2-position rotary table, driven by a hollow-shaft geared motor.
- An electric lifting table for loading and unloading trays in the tower.
- An upper tray transfer trolley.
- A lower transfer carriage for loading the rotary table.
- A rear maintenance drawer, allowing trays or tooling to be moved in and out.
- 30 stackable trays.
- A welded tubular section structure.
- Thermal insulation using rock wool panels (M0 non-flammable), thickness 100 mm.
- An internal laboratory in aluminised sheet metal, welded watertight. Adjustable air diffusion vanes for transverse distribution.
- External cladding in galvanised sheet steel, 4 pivoting inspection doors.
- A centrifugal fan to circulate the hot air.
- A set of shielded resistors, rack-mounted for easy maintenance.
- A centrifugal cooling fan for air recirculation through an exchange coil.
- Dampers to regulate the flow of fresh air and exhaust air from the furnace.
- Two K control thermocouples (heating and cooling).
- Two safety K thermocouples with approved transmitter.
- An electrical cabinet, comprising :
o PID oven temperature controller
o Siemens S7 PLC, Ethernet cards
o Relays, protections, power supplies.
o Command and control switches and indicators.
o Drives and motors
o Cabinet fans
o Steel cable trays
