TECFLUID

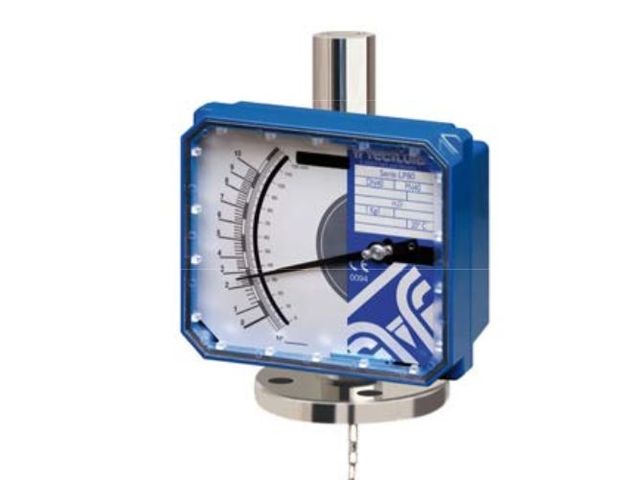

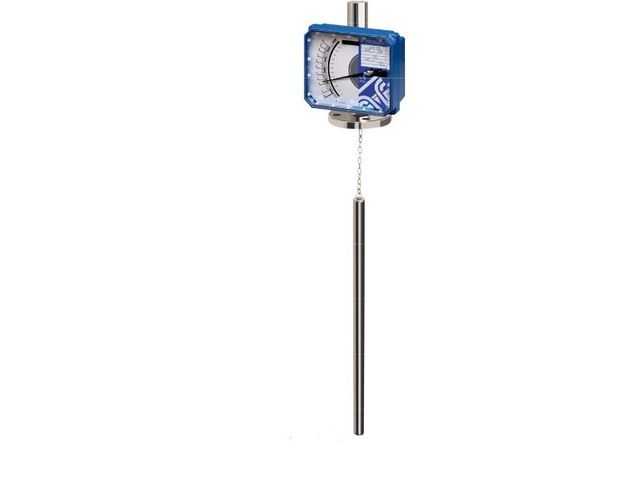

Indicator / Transmitter Series LP

Level indication

Ask for a quote Receive Documentation Contact the supplier

Level Indicator / Transmitter for liquids. Level indication by means of indicator box. Instrument suitable for extreme conditions (pressure, temperature, chemical resistance). Application areas:  Chemical, petrochemical and process industries… Suitable for pressure boiler applications, storage of toxic products, level measurement in liquids with foam, interface level measurement... Technical specifications:

Length:

  • 0,3 … 6 m

Accuracy:

  • +-1,5%

Connections:

  • DIN DN40 flanges
  • Thread fittings G 1 1/2”/ 1 ½”NPT
  • Others on request
  • Top or side mounted

Materials:

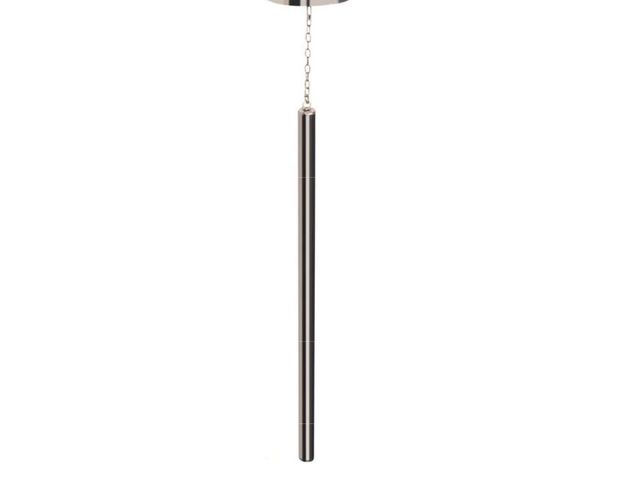

  • EN 1.4404 (AISI 316L). Floats in PP, PVC, PVDF
  • Coated aluminum indicator box

Local indication

Options:

  • 1 or 2 limit switches
  • 4-20 mA analog output, Ex version on demand
  • HART ™ protocol on demand
  • Indicator box optional in AISI 316L or PP
  • Explosion proof enclosure on demand, pending of ATEX certification

Download the complete technical features
