TECFLUID

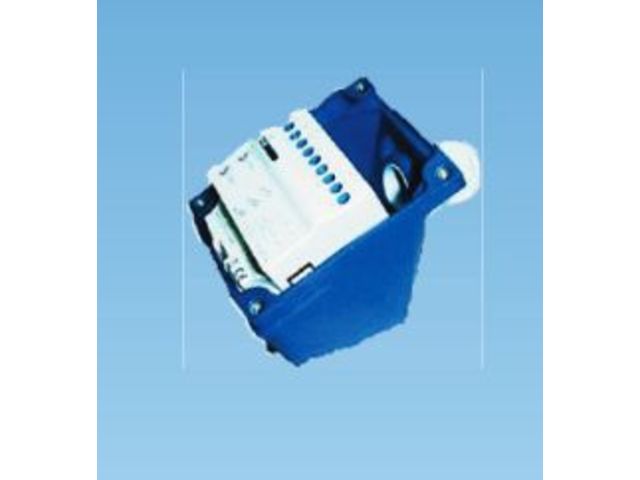

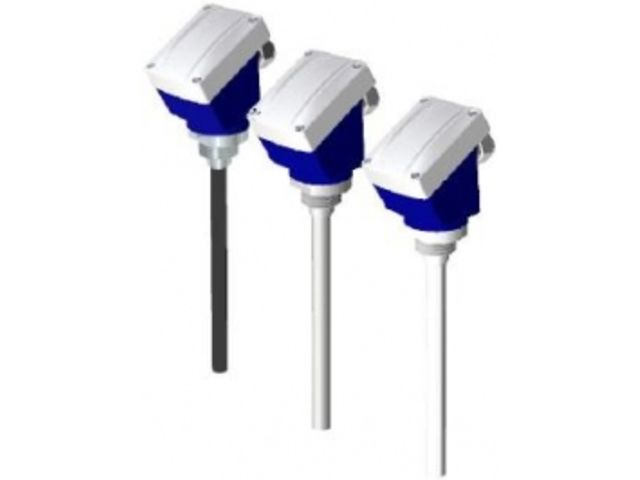

Capacitive sensors Series SCAV TB

Level indication

Ask for a quote Receive Documentation Contact the supplier

Capacitive level sensors with integrated amplifier for liquids and solids. Robust construction, materials resistant to corrosive products, simple and reliable. Application areas:  Level detection in storage silos, water treatment, pumping stations , industrial laudries, beverage industry, cosmetology. Technical specifications:

Lengths of detection: 200/500/100/1500/2000/2500/2970 mm

Accuracy: < 1 %

Process connections:

• Others on request
• Vertical mounting or on the side of the tank ( SCAP model)
• Housing box IP -67, orientable 350 °

Material probe: PVC , PP , PVDF, HALAR

Level detection :
• Programmable functions : Level control mini or maxi / filling or emptying
• Relay SPDT 6A/240AC - 6A/24VDC
• Adjustable time delay 0 .. 3s
• Dielectric Constant: > 1.8
• Power supply: 24VDC , 24VAC, 125VAC 110 .. 220 .. 240VAC

Options:
• Tube separator and / or dielectric AISI -316
• Thermal separator AISI -316
• Output 4 -20mA ( TCAV model)

OTHER PRODUCTS LEVEL INDICATION FROM TECFLUID

Liquid level switch by float Series LC40

Liquid level switch by float Series LC40

 Ask for a quote
Level switch by swinging float Series INHG Eco / T-15

Level switch by swinging float Series INHG Eco / T-15

 Ask for a quote
Level controllers by float series IMN TB INOX

Level controllers by float series IMN TB INOX

 Ask for a quote
Vibrating fork level swtich Series LD61

Vibrating fork level swtich Series LD61

 Ask for a quote
Resistive level detector Series NRC / NTBA / NTBI / NB

Resistive level detector Series NRC / NTBA / NTBI / NB

 Ask for a quote
Resistive level sensor Series NR / NRA

Resistive level sensor Series NR / NRA

 Ask for a quote

Check out all the products from level indication from TECFLUID

INTERNET USERS ALSO CONSULTED ON THE CATEGORY LEVEL INDICATION

TH72011 Transmitter - 433MHz, FSK (SOIC8)

TH72011 Transmitter - 433MHz, FSK (SOIC8)

 Ask for a quote
TH72015 Transmitter - 433MHz, FSK/ASK (10L QFN 3x3 Dual)

TH72015 Transmitter - 433MHz, FSK/ASK (10L QFN 3x3 Dual)

 Ask for a quote
Guided radar measurement Time-of-Flight Levelflex FMP52

Guided radar measurement Time-of-Flight Levelflex FMP52

 Ask for a quote

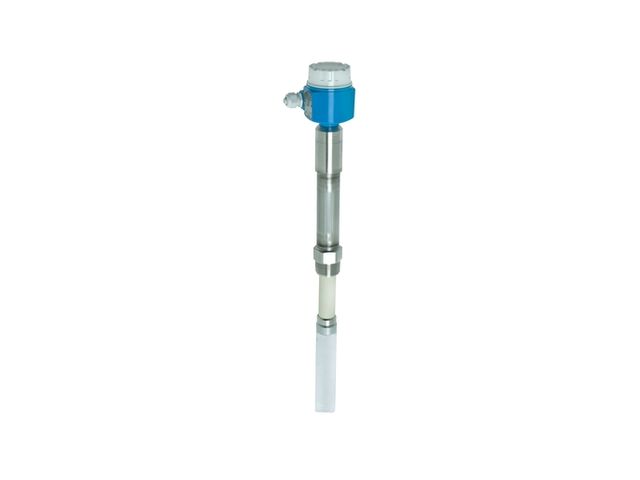

Capacitance Point level detection Solicap FTI56
