BAUMER SAS

IFRM 30 (Sn = 15 mm) - Inductive proximity switch

Distance sensors

Ask for a quote Receive Documentation Contact the supplier

General data
mounting type: unshielded
nominal sensing distance: Sn 15 mm
hysteresis: 3 ... 20 % of Sr

Electrical data
switching frequency: < 500 Hz
voltage supply range: +Vs 10 ... 50 VDC
current consumption: max. 10 mA
voltage drop: Vd < 3 VDC
output current: < 200 mA
short circuit protection: yes
reverse polarity protection: yes

Mechanical data
type cylindrical: threaded
material (sensing face): PBT
housing material: brass nickel plated
dimension: 30 mm

Ambient conditions
operating temperature: -25 ... +75 °C
protection class: IP 67

OTHER PRODUCTS DISTANCE SENSORS FROM BAUMER SAS

Diffuse sensors with background suppression

Diffuse sensors with background suppression

 Ask for a quote
FHDK 07 - Diffuse sensors with background suppression

FHDK 07 - Diffuse sensors with background suppression

 Ask for a quote
IFFK 10E9101 - Inductive sensors NAMUR

IFFK 10E9101 - Inductive sensors NAMUR

 Ask for a quote
IFFM 06 (medium) - Inductive proximity switch

IFFM 06 (medium) - Inductive proximity switch

 Ask for a quote
IZRM 30 - Inductive sensors special versions

IZRM 30 - Inductive sensors special versions

 Ask for a quote
OADM 20 (Laser, variable sensing range, &amp;lt; 300 mm) - Distance sensors

OADM 20 (Laser, variable sensing range, < 300 mm) - Distance sensors

 Ask for a quote

Check out all the products from distance sensors from BAUMER SAS

INTERNET USERS ALSO CONSULTED ON THE CATEGORY DISTANCE SENSORS

Gauging and distance sensors: optoNCDT ILR 1030/1031

Gauging and distance sensors: optoNCDT ILR 1030/1031

 Ask for a quote
Draw-wire sensors: wireSENSOR MP/MPW

Draw-wire sensors: wireSENSOR MP/MPW

 Ask for a quote

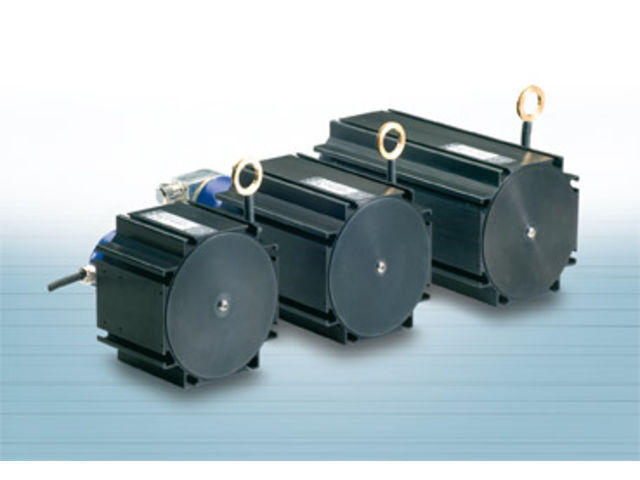

Draw-wire sensors: wireSENSOR P200
