BAUMER SAS

FGUM - Fork and angle sensors

Distance sensors

Ask for a quote Receive Documentation Contact the supplier

General data
type: through beam sensor
sensitivity: adjustment Pot, 270°
light source: pulsed red LED
wave length: 660 nm
light indicator: LED yellow

Electrical data
voltage supply range: +Vs 10 ... 35 VDC
output function: light / dark operate switchable
output circuit: PNP
voltage drop: Vd < 2,8 VDC
output current: < 200 mA
short circuit protection: yes
reverse polarity protection: yes

Mechanical data
housing material: die-cast zinc
connection types: connector M8, 3 pin

Ambient conditions
operating temperature: -10 ... +60 °C
protection class: IP 67

OTHER PRODUCTS DISTANCE SENSORS FROM BAUMER SAS

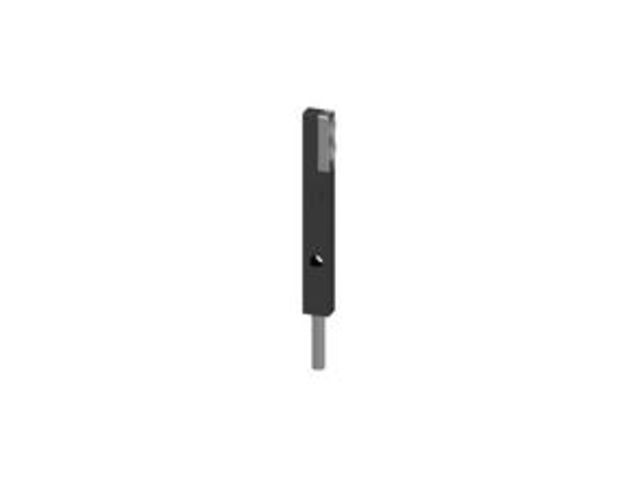

Diffuse sensors with background suppression

Diffuse sensors with background suppression

 Ask for a quote
FHDK 07 - Diffuse sensors with background suppression

FHDK 07 - Diffuse sensors with background suppression

 Ask for a quote

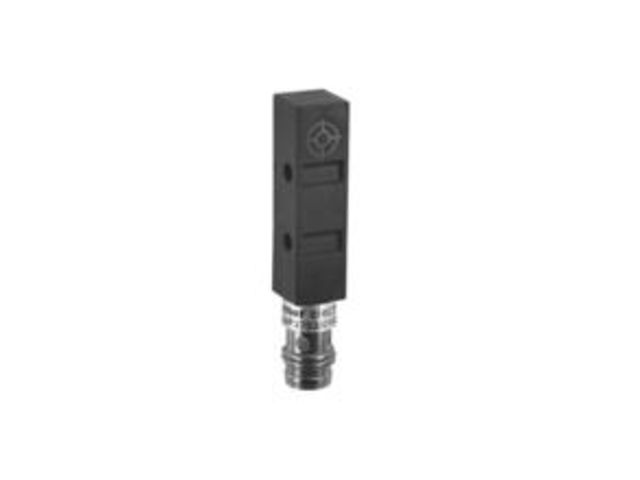

IFFK 08 - Inductive proximity switch

IFFK 08 - Inductive proximity switch

 Ask for a quote

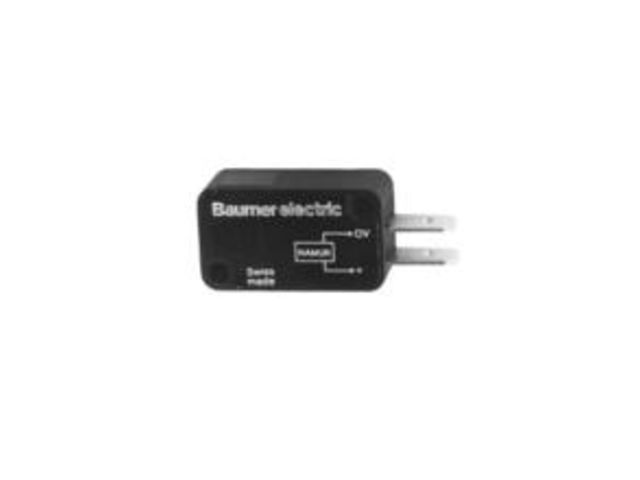

IFFK 10E9101 - Inductive sensors NAMUR

IFFK 10E9101 - Inductive sensors NAMUR

 Ask for a quote
IFFM 06 (short) - Inductive proximity switch

IFFM 06 (short) - Inductive proximity switch

 Ask for a quote
IZRM 30 - Inductive sensors special versions

IZRM 30 - Inductive sensors special versions

 Ask for a quote

Check out all the products from distance sensors from BAUMER SAS

INTERNET USERS ALSO CONSULTED ON THE CATEGORY DISTANCE SENSORS

CONTACTLESS DISPLACEMENT MEASUREMENT CHAIN

CONTACTLESS DISPLACEMENT MEASUREMENT CHAIN

 Ask for a quote
Low-cost draw-wire displacement sensors: wireSENSOR MK30/MK46/MK77/MK120/MK88

Low-cost draw-wire displacement sensors: wireSENSOR MK30/MK46/MK77/MK120/MK88

 Ask for a quote
Draw-wire sensors: wireSENSOR MPM

Draw-wire sensors: wireSENSOR MPM

 Ask for a quote

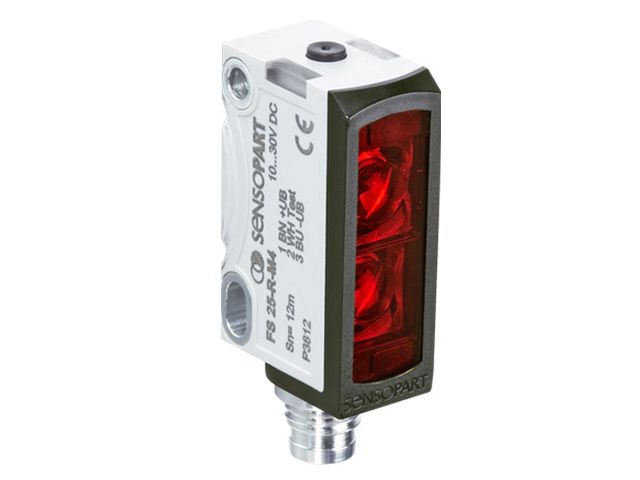

Photoelectric retro-reflective sensor | FR 25-RLO2-PNSL-M4

Photoelectric retro-reflective sensor | FR 25-RLO2-PNSL-M4

 Ask for a quote

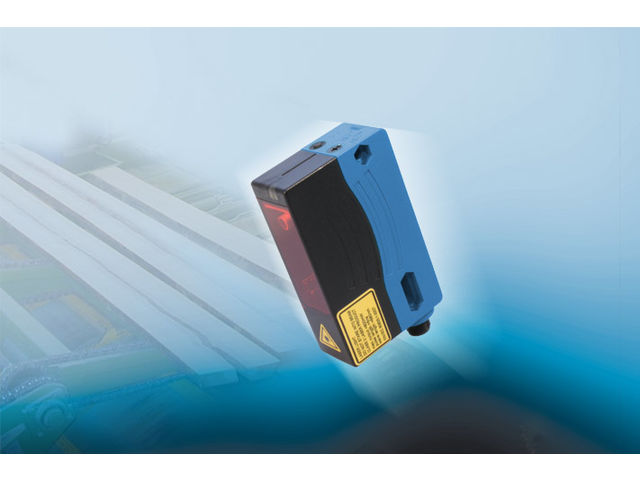

Powerful laser distance sensor for industrial applications now with IO-Link
