REALMECA

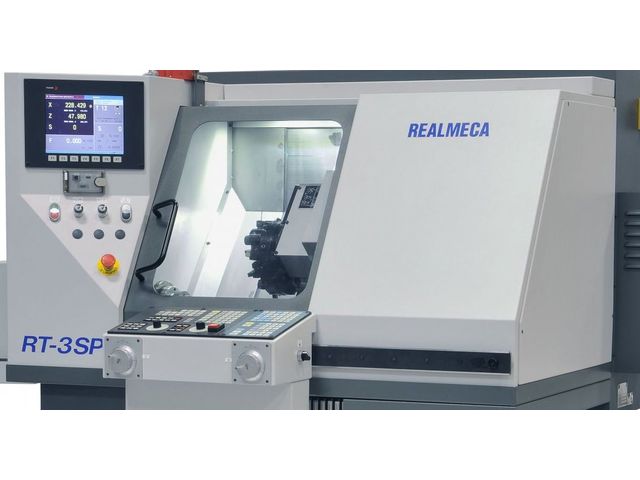

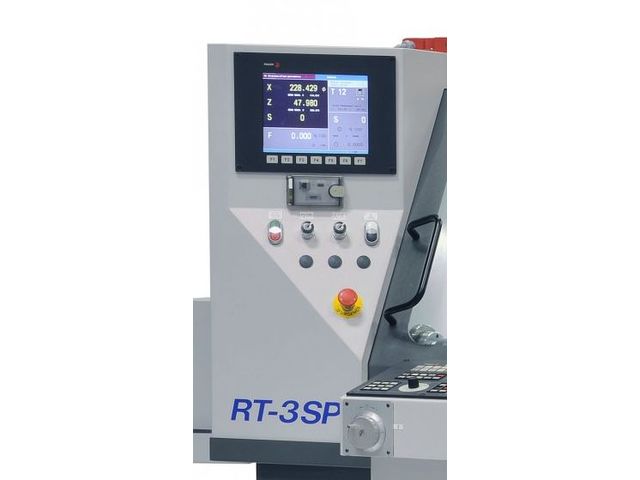

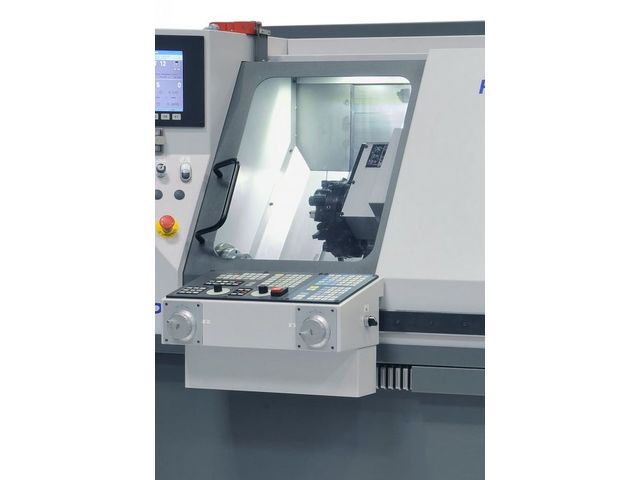

High-precision lathes - RT-3 SP

Turning centre

Ask for a quote Receive Documentation Contact the supplier

CAPACITY
Stroke X : 125 mm
Stroke Z : 300 mm
Center distance : 400 mm
Tailstock : CM2
Stroke C : 360°

TURNING SPINDLE
Max, Spindle speed Rpm:  100 /6 000
Power spindle motor Kw:  4
Spindle nose:  ø90
Bar capacity: 32 mm

FEEDRATE
Cutting feed: 15 m/mn
Rapid feed: 15 m/mn
C Axis  Rpm:  300
Resolution : 0,1µ / 0,001°

TURRET
Number of tool position VDI 16:   8
Number of tool position VDI 20:   8

DIMENSION / WEIGHT
Length/ Width/ Height: 1920*1580*1720 mm

Weight: 2800Kg
