Granulation dryer for continuous operation

Granulation dryer for continuous operation - Gebrüder Lödige Maschinenbau GmbH

Granulation dryer for continuous operation - Dryers

Granulation dryer for continuous operation - produit présenté par Gebrüder Lödige Maschinenbau GmbH

Granulation dryer for continuous operation

Dryers

External sheath "AISI 316L seamless tube Ø 6 mm Length: standard 40 mm, other lengths on request. Fixing ring: standard 50 mm diameter Other pipe diameters on request between 15 and 500 mm" Remarks...

Ask for a quote

Presentation

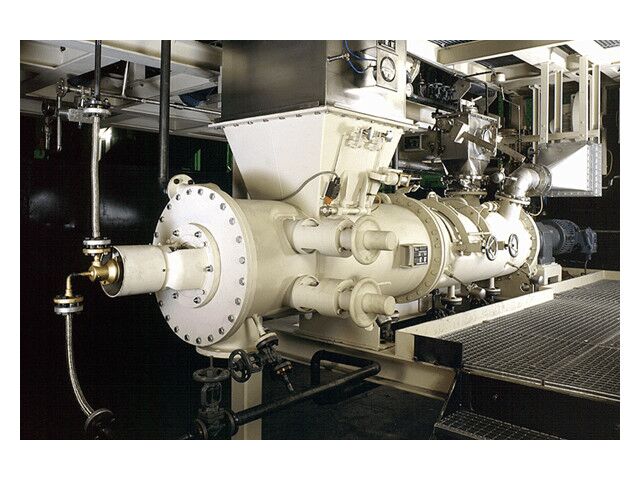

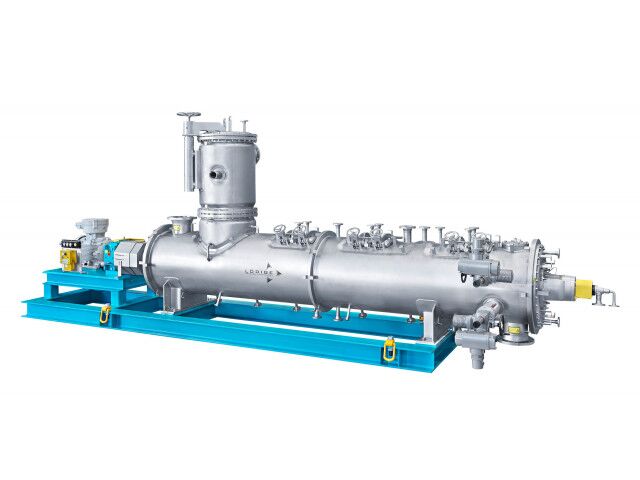

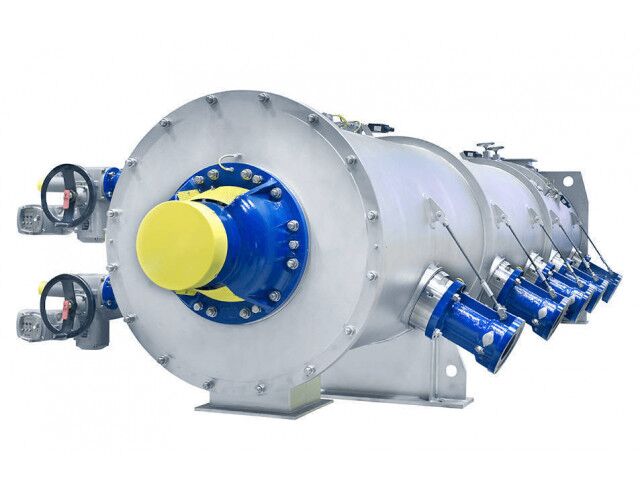

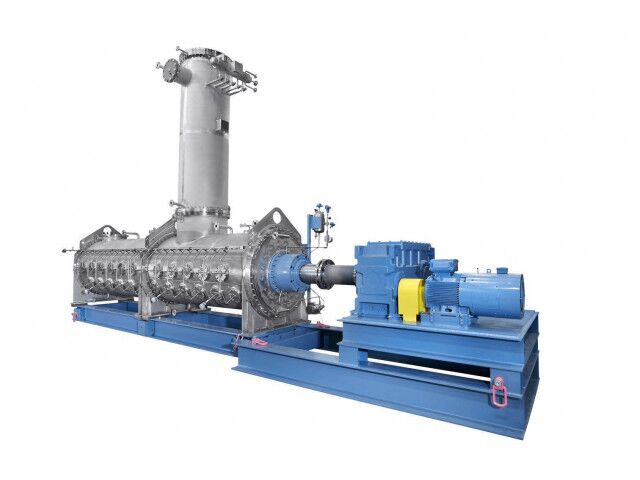

The granulation dryer is designed for continuous operation. A unique property of this dryer is its combination of convection and contact drying. Adaptation of the retention time to the specific process ensures that products are dried at low temperatures. At the same time, excellent granulation of the final product can be achieved.

This intense mixing effect separates the particles in the fluid bed, thereby creating a large product surface and preventing the generation of temperature and moisture gradients in the product bed. This leads to a significant increase in the heat exchange via the heated drum walls.
The product behaviour during drying is affected by the mixing tool geometry and choppers can be activated as an option; these can be used to control the average product retention time and the retention time distribution. It is therefore possible to achieve a defined grain size distribution during granulation processes

OTHER PRODUCTS DRYERS FROM Gebrüder Lödige Maschinenbau GmbH

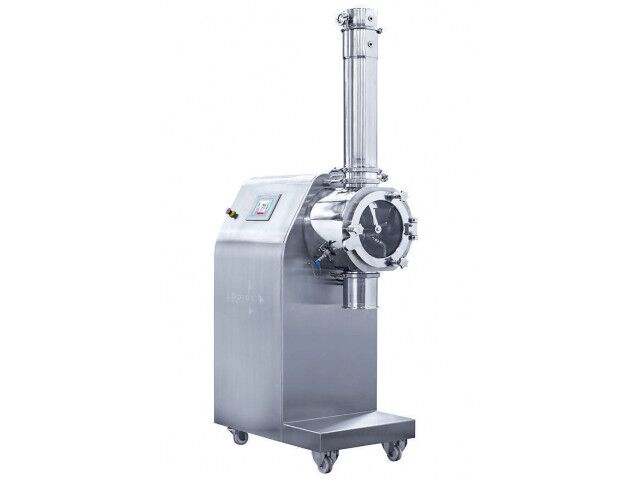

Vacuum shovel dryer (Lab machine)

Ask for a quote

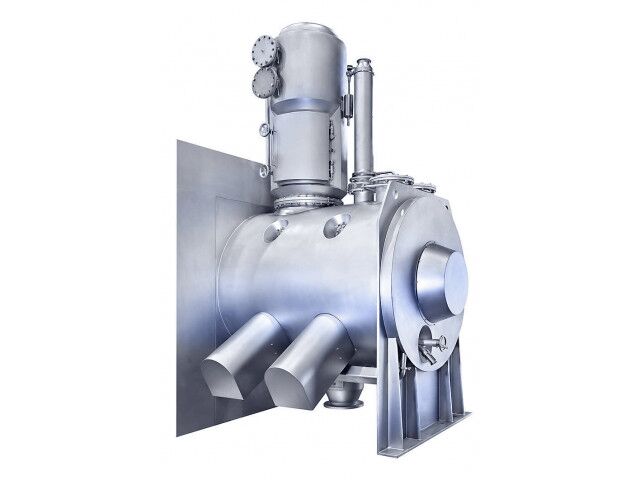

Vacuum shovel dryer DRUVATHERM®
