Gear motor

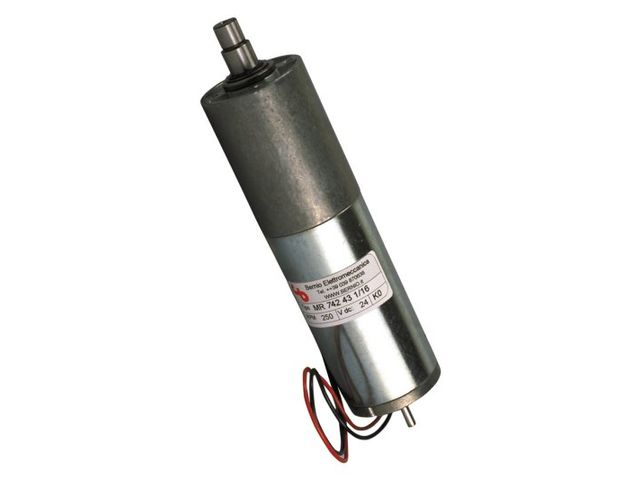

The standard motor 742 30 W output W 3700 Rpm loadness, 24 Vdc.
Drivingshaft supported by self lubrificating bushings. Outlet shaft is supported by an iron self-lubrificating bushing.
The motor is plated for corrosion strength. The motor has an electrical suppressor system for the CE standard.
Connecting 2 wire 0,75 x 250 mm.
* The rotation speed can change of ± 10%.
The S1 load test was made using a 1,2 A corrent in the air with an increase of temperature of 70° C.
The S2 load test was made using a 1,6 A corrent in the air with a timing 5` ON 5` OFF with an increase of temperature
of 80° C max
The starting corrent is 5,5 A and cannot be maintained for more than 2.
Max forces which may on the outlet shaft: Axial 10 kg, Radial 4 kg on the extremity of outlet shaft.
It is possible to apply an encoder.
