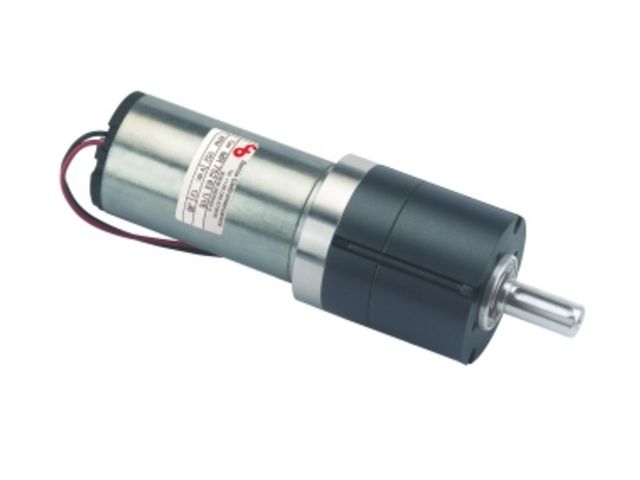

Length L of the gearmotor as a funtion of reduction and outlet number of revolution with the standard motor
752 40 output W 2900 Rpm loadness, 12/24 Vdc. Drivingshaft supported by self lubrificating bushings. Outlet shaft
supported by two coupled screened bearings. The motor and the reduction gear are both thrated for corrosion strength.
The motor has an electrical suppressor system for the CE standard.
Connecting 2 wire 0,75 x 200 mm.
* The rotation speed can change of ± 10%.
The S1 load test was made using a 1,3 A corrent in the air with an increase of temperature of 70° C.
The S2 load test was made using a 2,6 A corrent in the air with a timing 5` ON 5` OFF with an increase of temperature
of 80° C max
The starting corrent is 7,5 A and cannot be maintained for more than 2.
Max forces which may act on the outlet shaft: Axial 30 kg, Radial 40 kg on
