AC2M

Folding swing gate | SG51 (AC2M)

Folding swing gate | SG51 (AC2M) - AC2M

Folding swing gate | SG51 (AC2M) - Safety lock barrier

Folding swing gate | SG51 (AC2M) - produit présenté par AC2M

Folding swing gate | SG51 (AC2M)

Safety lock barrier

“ -> Installation behind a door possible. -> Pallet handling with low ceilings. -> Combination of an up-and-over pallet gate with a folding safety gate. -> Guaranteed safe by APAVE- and TÜV SÜD Product Service GmbH-testing. ”

Ask for a quote

Presentation

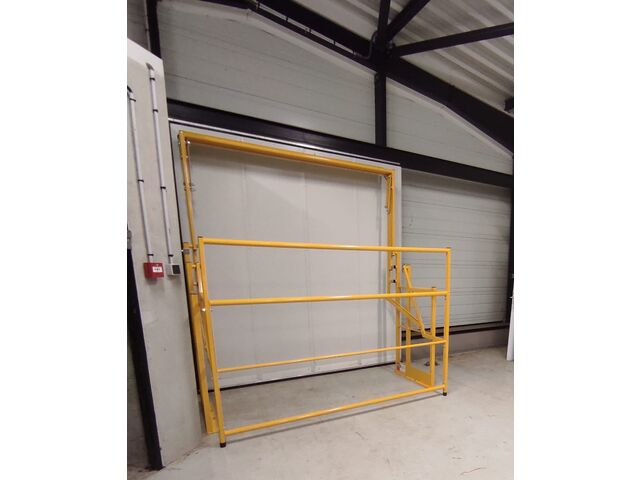

The SG51 folding swing gate is recommended for handling high loads under low ceilings and is particularly suitable for installation behind an outward-opening door or fire door.
It can also be used behind curtains or sliding doors.

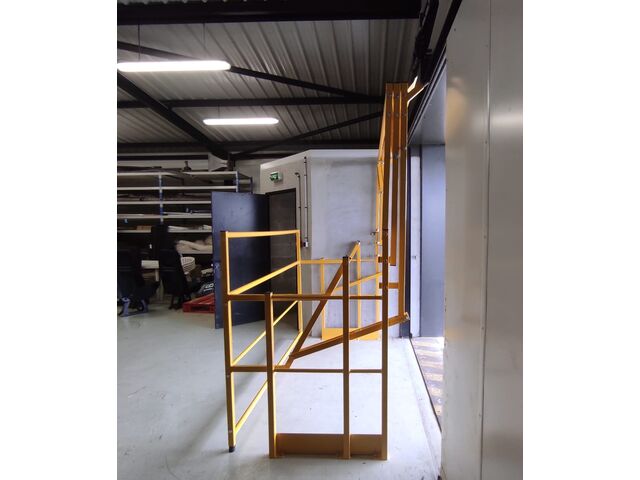

On the platform side, the guardrail corresponds to that of the SG1 loading pallet gate: it can be tilted. On the edge of the void, on the other hand, the guardrail can be folded up like that of the SG5 type gate: the rails fold together to free up the entire front space. This means that handling can take place without constraint behind a door, whether it is open or closed.

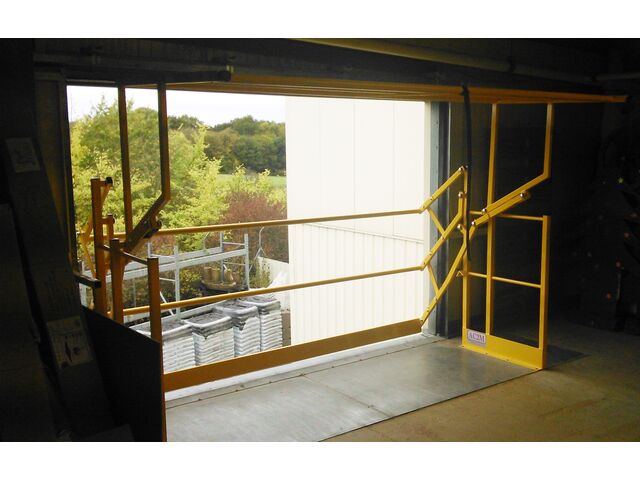

When the safety gate is open at the edge of the void, the three front rails are grouped together at the top and the load from the level below can be deposited on the platform. The operator behind the safety cage operates the tilting guardrail to close the folding guardrail on the edge of the void. The continuity of the guardrail is guaranteed and the operator can unload in complete safety.

To ensure maximum safety, SG5 interlock gates have been tested and certified by APAVE and TÜV SÜD Product Service GmbH (German certification body).

Would you like to find out more? Visit our website https://www.ac2m-sarl.fr/barriere-ecluse-basculante-sg5-orleans-loiret.html or contact us by e-mail: ac2m@ac2m-sarl.fr or by telephone +33 (0)2 38 59 97 99.

Technical features

Ensures operator safety on the mezzanine floor. TÜV SÜD Product Service GmbH and APAVE approved. Produced in our workshops in France. Made-to-measure design and construction. Various widths and depths. RAL 1003 safety yellow finish, others on request.

Download the complete technical features
