CS Instruments GmbH & Co. KG

Flow meter - VA 570

Thermal flow meter

Ask for a quote Receive Documentation Contact the supplier

Flow meter VA 570 is supplied with an integrated measuring section for compressed air and gas pipes. The measuring sections are available in flanged version or with R resp. NPT thread.

A special feature is the removable measuring head. So the measuring unit can be removed easily and quickly for calibration or cleaning purposes without having to dismount the measuring section intricately. During this period the measuring section is sealed by a closing cap (accessory).

The screwing with centring device ensures that the sensor is positioned accurately in the centre when screwing it into the measuring section furthermore it grants an exact positioning in the flow direction. This avoids unnecessary measuring faults.

The new flow meters VA 550/ 570 work according to the calorimetric measuring principle. Therefore an additional temperature and pressure compensation is not necessary.

Due to its robust design, the aluminum die cast housing, the robust sensor tip made from stainless steel 1,4571, the new VA 550/ 570 are suitable for demanding industrial applications. An ATEX version is available for applications in explosive areas. For flow measurement e. g. of natural gas there is a version with a DVWG approval.

If you have any questions, please contact us at https://www.cs-instruments.com/

Download the complete technical features

OTHER PRODUCTS THERMAL FLOW METER FROM CS Instruments GmbH & Co. KG

VA 500 - Flow meter

VA 500 - Flow meter

 Ask for a quote
Portable flow meter - PI 500

Portable flow meter - PI 500

 Ask for a quote
Flow measurement Set - DS 400

Flow measurement Set - DS 400

 Ask for a quote

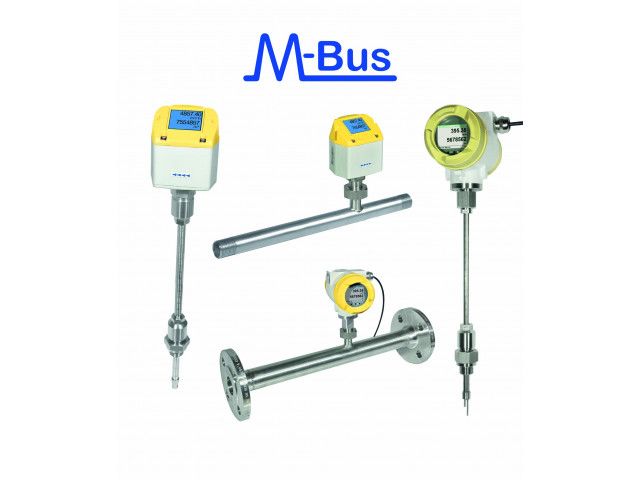

M-Bus - Industrial gas meter

M-Bus - Industrial gas meter

 Ask for a quote
VA 521 - Compact Inline flow meter

VA 521 - Compact Inline flow meter

 Ask for a quote
VA 525 - Compact Inline flow meter

VA 525 - Compact Inline flow meter

 Ask for a quote

Check out all the products from thermal flow meter from CS INSTRUMENTS GMBH & CO. KG

INTERNET USERS ALSO CONSULTED ON THE CATEGORY THERMAL FLOW METER

Thermal mass flowmeter

Thermal mass flowmeter

 Ask for a quote
Thermal mass flow meter

Thermal mass flow meter

 Ask for a quote
Thermal mass flowmeter

Thermal mass flowmeter

 Ask for a quote
Proline t-mass F 300 Thermal mass flowmeter

Proline t-mass F 300 Thermal mass flowmeter

 Ask for a quote

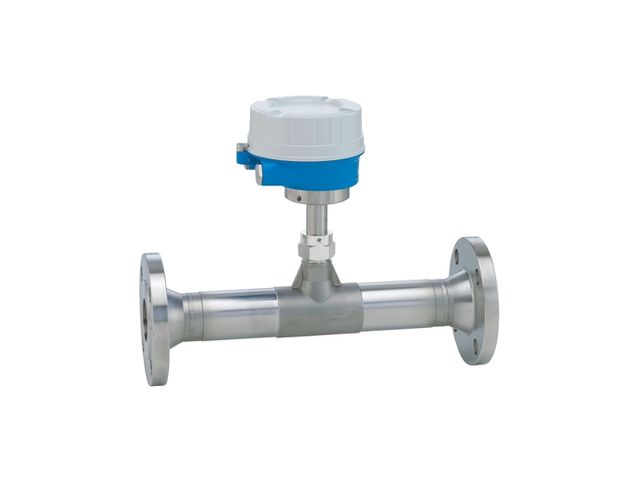

Proline t-mass F 500 Thermal mass flowmeter
