FLEX series screw compressor – powerful mini compressors for quiet operating environments

FLEX series screw compressor – powerful mini compressors for quiet operating environments - ALMiG Kompressoren GmbH

FLEX series screw compressor – powerful mini compressors for quiet operating environments - Rotary screw compressors

FLEX series screw compressor – powerful mini compressors for quiet operating environments - produit présenté par ALMiG Kompressoren GmbH

FLEX series screw compressor – powerful mini compressors for quiet operating environments

Rotary screw compressors

Ask for a quote

Presentation

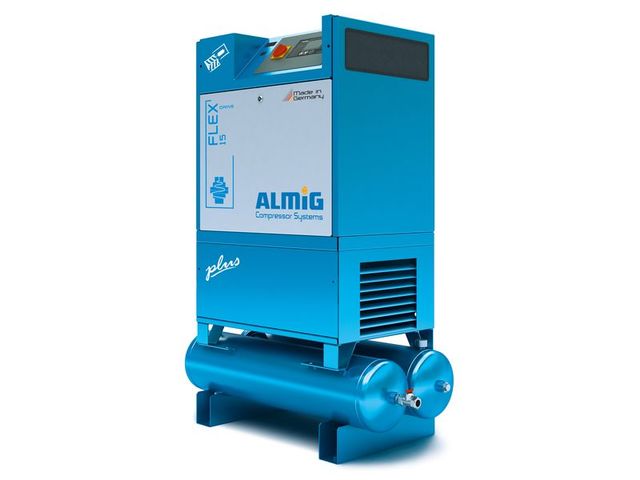

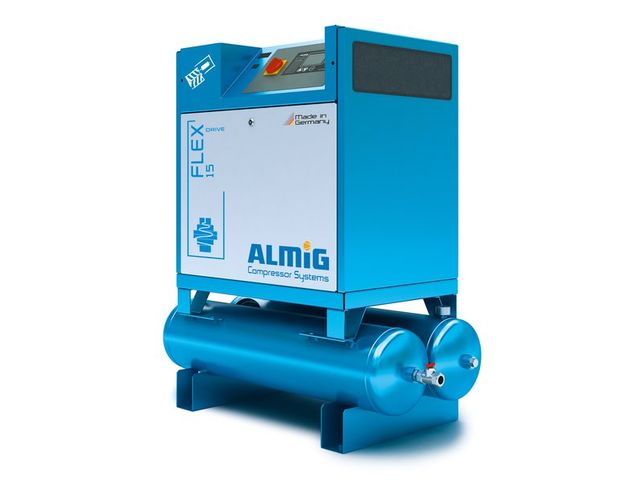

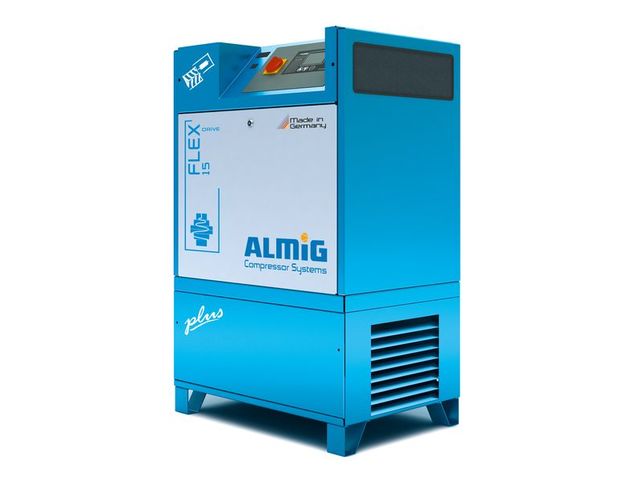

The speed-controlled, directly driven compressors of the FLEX series are based on cutting edge research and technology and are used wherever compressed air is to be generated by a small, compact and extremely quiet system. Because of the integrated single-shaft solution, the sound level of these small screw compressors is around 60 dB(A), allowing them to be used directly in the workplace.

Market analyses show that on average compressors only have a utilisation rate of around 50–70 %. The maximum delivery volume is, however, only needed during peak times.
The integrated ALMiG SCD technology therefore delivers an integral drive concept with maximum cost-effectiveness for Speed Control and Direct drive. SCD technology, the benefits of which come to the fore in partial load applications, allows you to achieve an energy saving of up to 35% through:

Speed control
Constant mains pressure, stepless from 5 - 13 bar
Extremely good system efficiency
No start-up changeover power peaks
No expensive idle times
