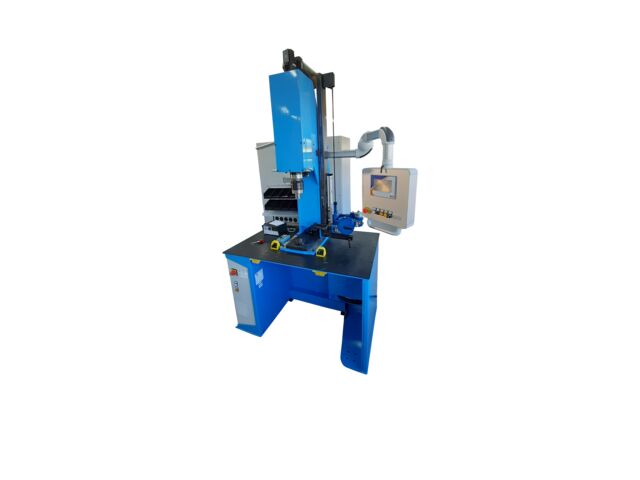

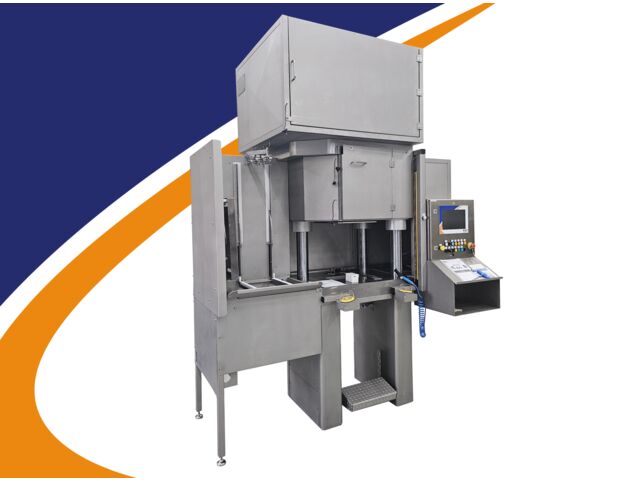

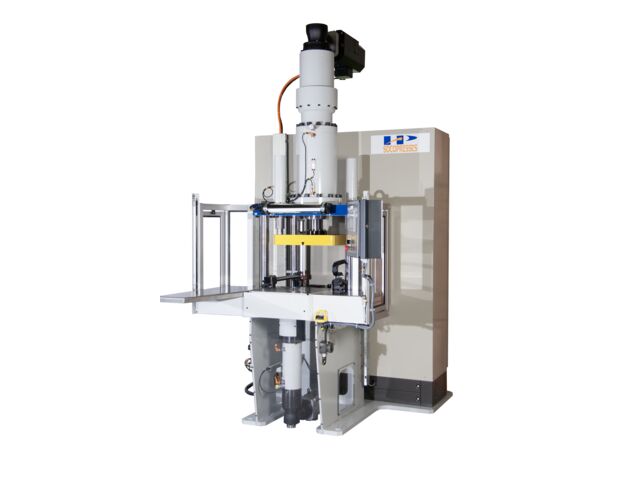

Electric presses

Turnkey Assembly System

“ - Energy-saving - Easy to program - Customized stroke ”

Ask for a quote

Presentation

Our electric cylinder designs have been used on our machines since 1994, and have been proven in over 10 million cycles. By their very nature, electric cylinders are precise in displacement, ensuring positioning repeatability to 1/100th of a millimeter.

With a capacity of up to 1,000 kN and a travel range of 300 mm (longer travels available on request).

The electric axis bends to our will, adapting in position or force according to the program you have selected, using both a servo loop and a PID controller.

PLC control and SOCOVIEW software enable you to create recipes without an automation specialist.

This solution is an ecological ally: energy-efficient, it is generally more efficient than a hydraulic solution, and above all, you only consume what you use (there's no pump running all the time).

Technical features

Function: punching, compression, cutting, assembly Structure: compact, 4-column, with moving table, slide, gooseneck Control: automatic, PLC-controlled, manual control Other features: high speed, vertical, custom, digital, economy, fast cycle, electronic, universal, with automatic feeder, wide opening, with front loading/unloading Applications: rubber, carbon fiber reinforced composites (CFRP) parts, steel, aluminum, industrial applications, pharmaceutical applications, aerospace, aeronautics, aeronautics industry. Force: Max: 1000 kN Min: 6 kN Opening: Max: 1000 mm (39 in) Min: 50 mm (2 in), other on request Stroke: 200 mm, 300 mm (8 in, 12 in), other on request Press speed: Max: 250 mm/s Min: 0.1 mm/s Hydraulic pump power: Max: 16 kW Min: 2 kW
