Heavy Duty Manual Pin Inserter | Model PMH

Turnkey Assembly System

Ask for a quote

Presentation

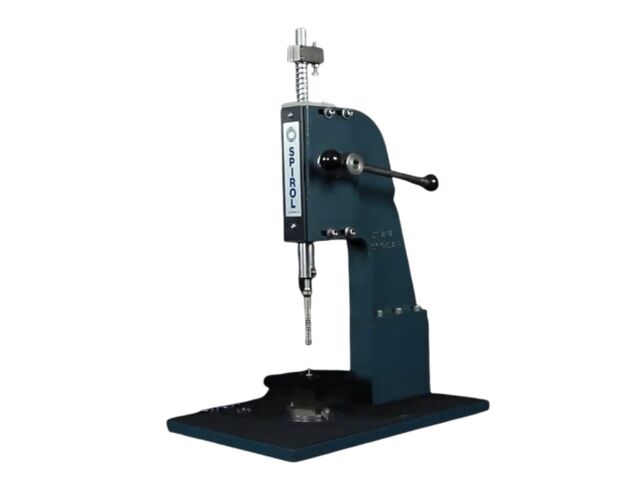

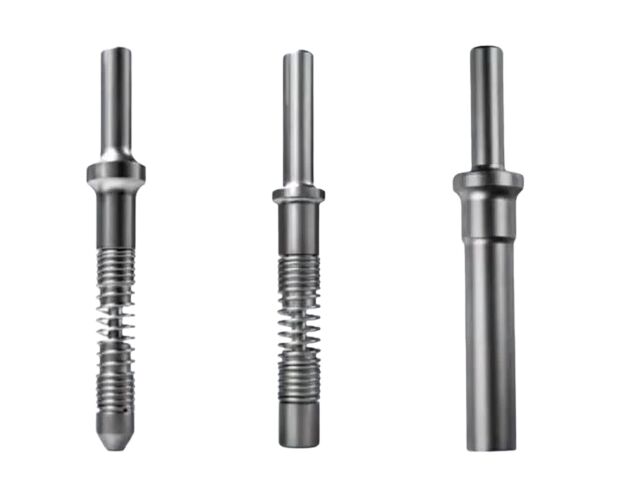

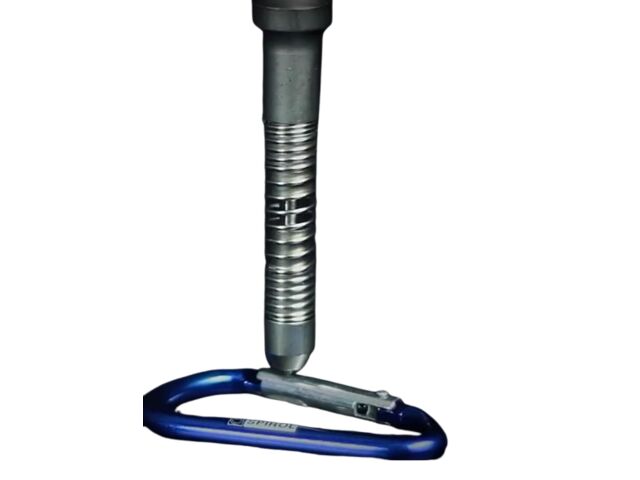

This exceptionally versatile tool is ideally suited for low to moderate levels of production: from a single unit for prototype assembly, to multiple units on an assembly line. The Model PMH easily accommodates quick change-overs. The fixture is simply replaced at the base of the machine, and the pin diameter is easily changed by switching the pin driving chuck. The precisely machined rack and casting results in smooth operation, precise positioning, repeatability, and durability.

The Model PMH Heavy Duty Manual Pin Inserter installs pins ranging in diameter from 0.8mm-10mm (.031”-.375”) with a maximum insertion force of 6.7 kN (1,500 lbs).

Technical features

Simple to operate and easily adjustable Base plate is pre-drilled for simple and precise fixture location Cast iron frame, all heavy duty components Installs pins ranging in diameter from 0.8 mm to 10 mm (1/32” to 3/8”) Easy tooling changeover to accommodate a variety of applications 6.7 kN (1500 lbs.) maximum insertion force Vertical adjustment: Uses spacer blocks Fixed throat dimension: 120 mm (4.7”) Stroke: 76 mm (3”) – 177 mm (7”) Torque-controlled handle that can be preset to the desired installation force
