“ All-in-one systems allowing the full mechanical characterization of your devices in a very short time. From vibration measurements (in plane and out of plane) to the topographie (roughness, waviness, etc.), one system combines several measurement techniques - Laser Doppler vibrometry (out of plane vibrations, picometer resolution) - Video stroboscopy (In plane Vibrations, sub-nanometer resolution) - White light interferometry (Topography, sub-nanometer resolution) ”

Ask for a quote

Presentation

Inspired by the growing variety of Microelectromechanical systems (MEMS), Polytec has developed an innovative line of microscope systems for the measurements of MEMS dynamics and topography.

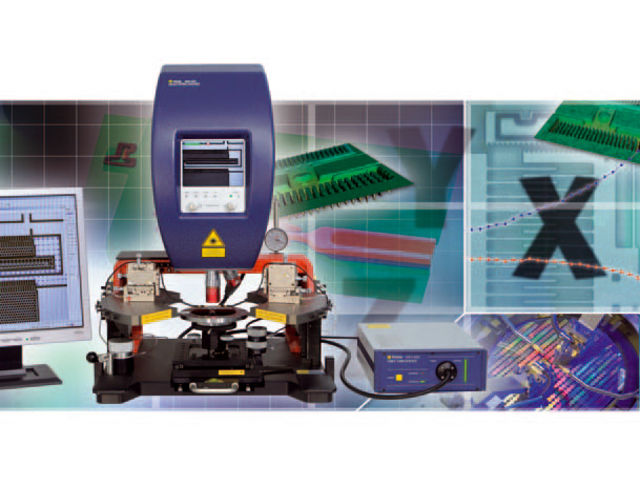

The MSA-500 Micro System Analyzer is the premier, fully-integrated, measurement tool for the analysis and visualization of structural vibrations and surface topography in micro structures. For wafer-level testing, all systems can easily be mounted onto manual or fully automated probe stations.

Polytec's new UHF-120 Ultra-High-Frequency Vibrometer has an extended bandwidth that allows characterization of out-of-plane vibration frequencies up to 1.2 GHz. Despite incorporating a new optical design, the vibrometer retains the familiar advantages and features that make Polytec vibrometers the industry's gold standard.

Link microstructures analysis video

INTERNET USERS ALSO CONSULTED ON THE CATEGORY INTERFEROMETER

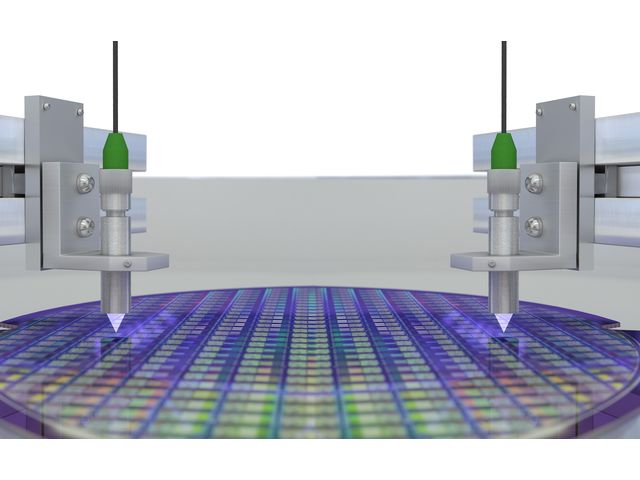

White light interferometer for absolute distance measurements
