Presentation

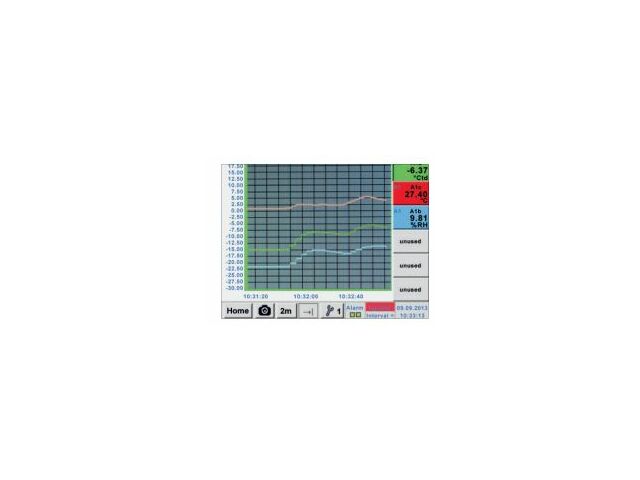

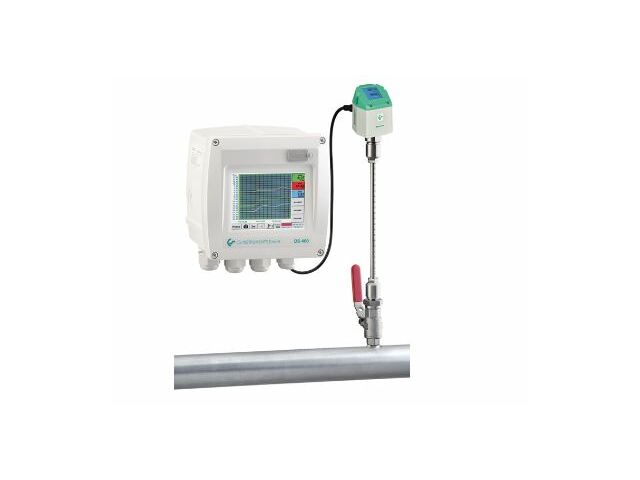

For stationary dew point monitoring of refrigeration or adsorption dryers. The touch screen graphic display enables an intuitive operation and shows the progress of the measured values. 2 alarm relays are available for monitoring of threshold values. Available either with a classic analogue output 4...20 mA or optionally with digital interfaces like Ethernet and RS 485 (Modbus protocol). As a stand-alone solution the measured data stored in the optional data logger can be read-out via USB stick and evaluated by means of the software CS Soft Basic.

Special Features of dew point measurement DS 400-Set:

-3.5" graphic display - easy operation with touch screen
-System ready for plug-in: Everything completely wired
-2 alarm contacts (230 VAC, 3 A) pre- and main alarm freely adjustable
-An alarm delay can be set for each alarm relay
-4...20 mA analogue output
-Option: Ethernet and RS 485 interface (Modbus protocol)
-Option: Webserver
