“ Used for many years, the inflatable paint booth has proven itself and has proven to be the best alternative to traditional cabins that are too expensive, energy-hungry and require installation work. ”
Ask for a quoteReceive DocumentationContact the supplier

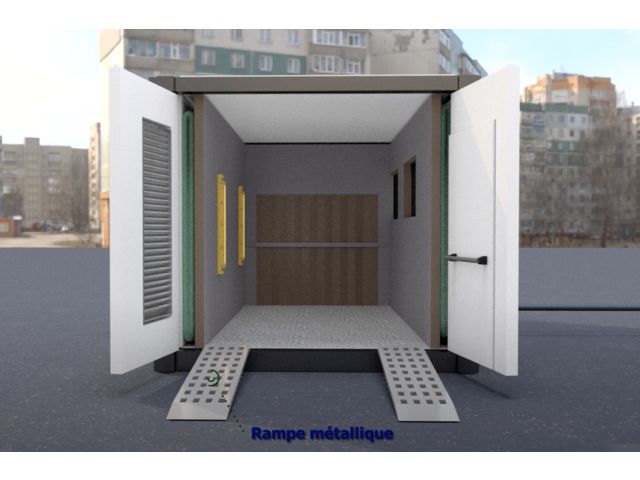

The sellerpro transportable / mobile container paint booths offer an ingenious convergence of existing technologies combined with an innovative design perspective. This product meets a very specific and unique requirement: mobility. When you have to paint "on site", profitability requires that you maximize every aspect of transportability to stay competitive. You can produce a high quality finish without much hassle! the container paint booth is the solution you are looking for!

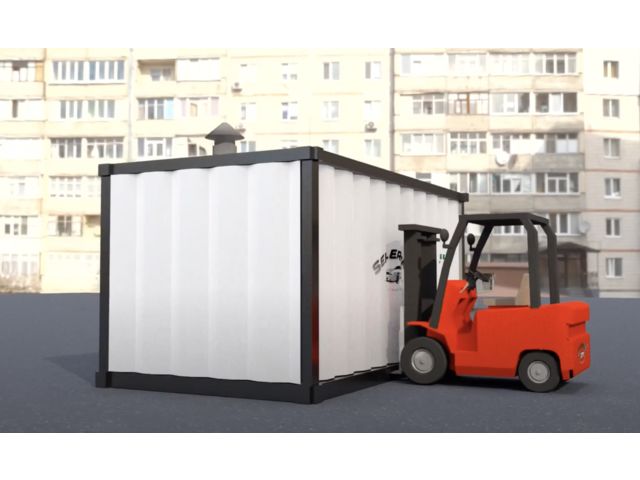

just put it down, plug it in and work! When you're done, unplug it and place it in a truck. You have now left for the next site. It's really that simple! This mobile paint booth offers:
- High quality results
- Simple to install, simple to disassemble
- Easy to use
- Easy to maintain
- Completely mobile
CONTAINER PAINT MANUFACTURE
- 20 foot container base and spray painted top coat
- Entrance door: Double leaf door, insulated 1x door with panic bar
- Air inlet door with G3 filtration grid
- Insulation (interior side): sandwich panels filled with 40 mm PIR polyurethane, class B1 flammability
- Window: PVC thermopane
- Lighting system: 2 4x36W closed type LED lamps, ATEX zone II.
TECHNICAL SPECIFICATIONS
- Type of ventilation of the container cabin: closed painting with horizontal ventilation
- Air speed (spray booth) 0.5 m / s (empty spray booth)
- Air speed (at the surface of the filters): 0.60 m / s
- Operating temperature: room temperature

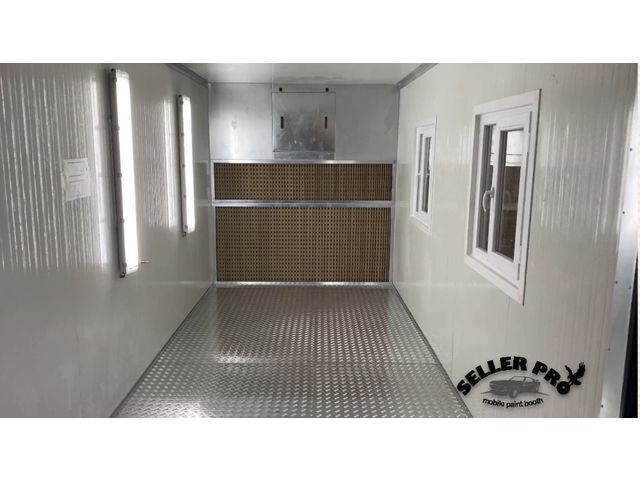

- Floor of the spray booth: aluminum checkered plate.
ELECTRIC CONTROL PANEL
- Control panel: Standard control panel, Schneider Electric and equivalent, Controlled. from the outside of the spray booth.
CONTAINER DIMENSIONS
- External dimensions: Length (mm): 6.058 / Width (mm): 2.438 / Height (mm): 2.591 - Internal dimensions: Length (mm): 5.900 / Width (mm): 2.350 / Height (mm): 2.390
- Dimensions of the filtering wall: Length: 2.200 mm / Depth: 800 mm / Height: 1.800 mm - Filtering surface: 4 m²
- Window: 600 x 600mm
ADDITIONAL COMPONENTS
- Air gun and hose system placed on the interior wall
- 380V electrical outlet placed on the exterior wall
- Air compressor inlet placed on the outside wall.
All you need to run your factory !
