Desiccant dryer batch for plastic pellets : DRYMAX E 180–1200

Dehydrator for plastic

Ask for a quote

Presentation

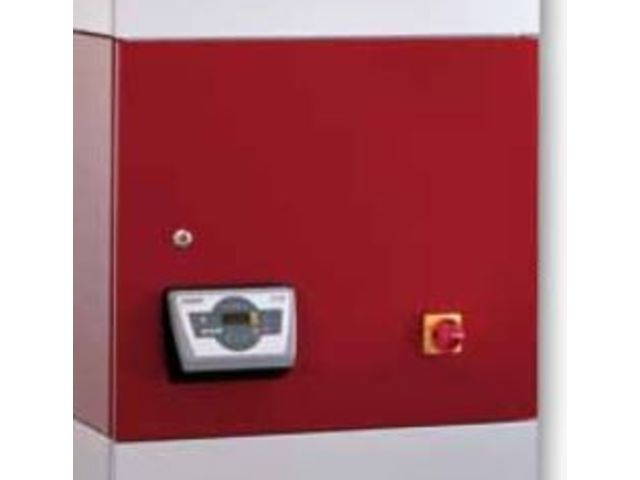

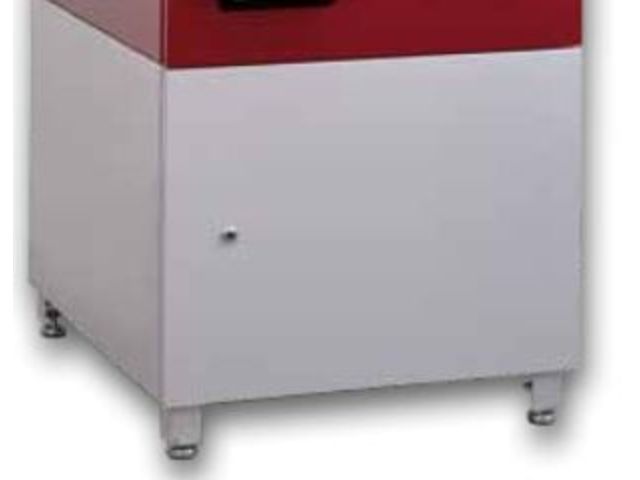

The DRYMAX battery dryer series are equipped with two desiccant beds and therefore provide continuous process air and constant dry air quality for the perfect drying of plastic resin.
»» Dew Point up to -60°C
»» Weekly Timer
»» Switchover Valves, stop position controlled
The switchover valves provide optimized control of drying and regeneration cycles in both desiccant beds.
»» Energy Saving Counter Airflow Regeneration
Reduces energy costs through fastest dehumidification of the desiccant beds during the regeneration phase.
»» SmartReg Energy Saving Function
Time-optimized control of the regeneration and cooling of the desiccant beds.
»» Material Protection Function
Avoids over-drying and thermal degradation of the plastic resin through short term lowering of the drying temperature during production stoppages of the processing machine.
»» Micro Particle Filter in Return Air
Dust separation efficiency of up to 99.9% for high process safety.
»» Side Channel Blowers
For separate process and regeneration blowers in order to guarantee constant air flow even during fluctuating pressure conditions.
