DATAPAQ Oven Tracker XL2 Magnetic+Alu Thermocouple

DATAPAQ Oven Tracker XL2 Magnetic+Alu Thermocouple - Fluke Process Instruments GmbH

DATAPAQ Oven Tracker XL2 Magnetic+Alu Thermocouple - Temperature sensors

DATAPAQ Oven Tracker XL2 Magnetic+Alu Thermocouple - produit présenté par Fluke Process Instruments GmbH

DATAPAQ Oven Tracker XL2 Magnetic+Alu Thermocouple

Temperature sensors

Ask for a quote

Presentation

Strong crimped plug/cable attachment
Circular cable cross section to reduce kinking and twisting
Various cable lengths available

Types:

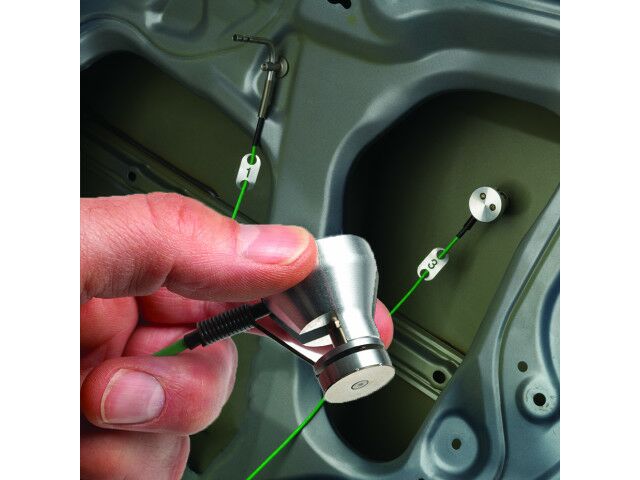

MicroMag surface + air thermocouples
Easy to place, ideal for difficult-to-access car body shell areas
Encapsulated magnet design allows reliable direct use even on wet painted and e-coated substrates

IRMAG surface thermocouple
Designed to measure ferrous substrates in IR cure ovens
Robust alternative to Adhesive Patch thermocouple, combines easy attachment and fast thermocouple response

Magnetic surface + air thermocouples
Magnet offset from sensor prevents heatsink effect
PTFE handle for easy removal or repositioning
PTFE-coated to prevent sticking

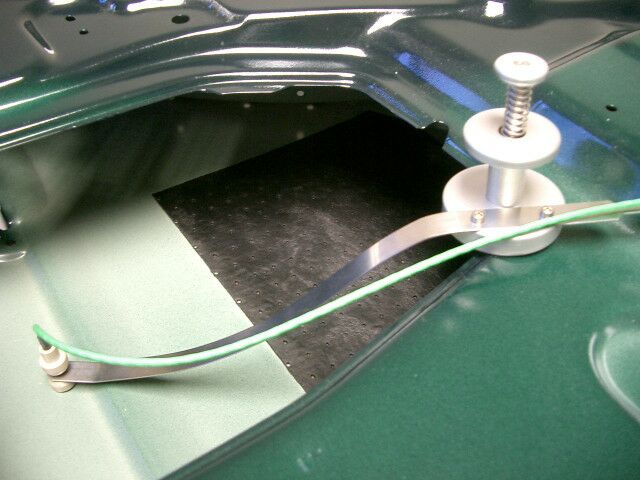

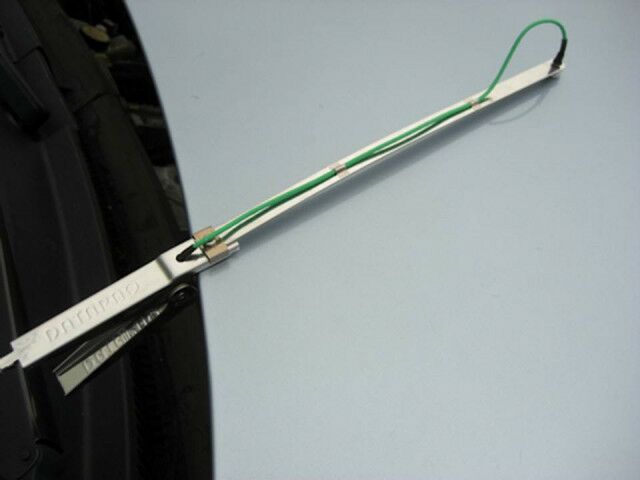

Aluclamp surface thermocouple
Clips onto the edge of an aluminum car hood or other nonferrous panel
Allows measurement of surface temperature at center of panel

Aluminum automotive thermocouples with a spring-loaded bobbin for use on aluminum car body shells

Technical features

Max. temperature (standard): 265°C (509°F) Max. temperature (IRMAG): magnet 300ºC (572ºF); cable 400ºC (752ºF) Cable length: 1.5 m, 3 m, 6 m (5 ft, 10 ft, 20 ft) Accuracy: Specified to ANSI MC96.1 Special Limits of Error (±0.4% or ±1.1ºC/±2.0ºF, whichever is greater) Thermocouple: Type K

Download the complete technical features
