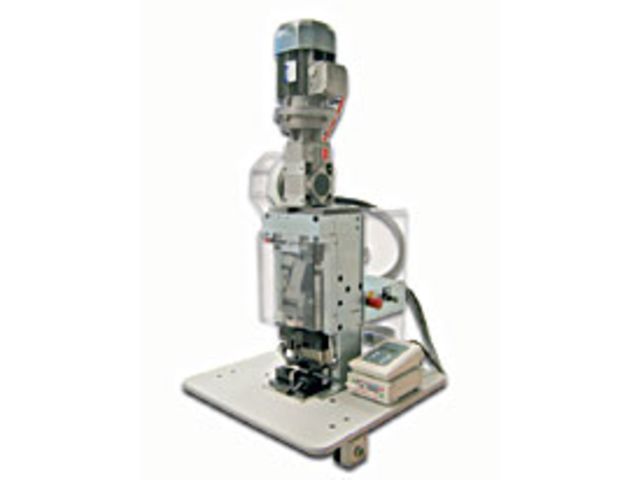

Crimp : UniCrimp 2500 B

Programmable Crimping Machine :

The UniCrimp 2500 B is a semi-automatic benchtop crimping machine with 25 tons of press force. It is ideally suited for special applications such as hexagonal forming of metal tube terminal ends for cables with a cross section up to 50 mm² (0 AWG). With the adequate options, the UniCrimp 2500 B equally processes banded terminals.

In addition to the powerful UniCrimp 2500 B crimping press, Schleuniger also offers the appropriate HeavyCrimper XL special crimp applicator. It features a sturdy construction and guarantees highest accuracy and low maintenance costs.

With the user-friendly control panel, operation of the UniCrimp 2500 B crimping machine is simple. The crimping process is either triggered by a two-handed trigger mechanism or by a foot pedal. Optionally, crimp force monitoring is available.

For ease of set-up, the UniCrimp 2500 B features a creep mode. This enables the drive mechanism to be moved slowly backwards and forwards facilitating visual checking.

Short Cycle Times :

The UniCrimp 2500 B features a proven combined crank/knee lever drive for fast closing of the crimp applicator. This guarantees short cycle times and an ideal forming process during the actual terminal crimping.
