Conveyors | AquaPruf 7600 Ultimate

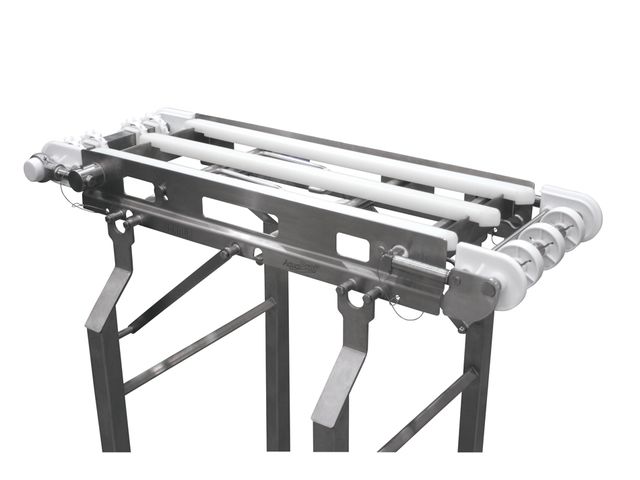

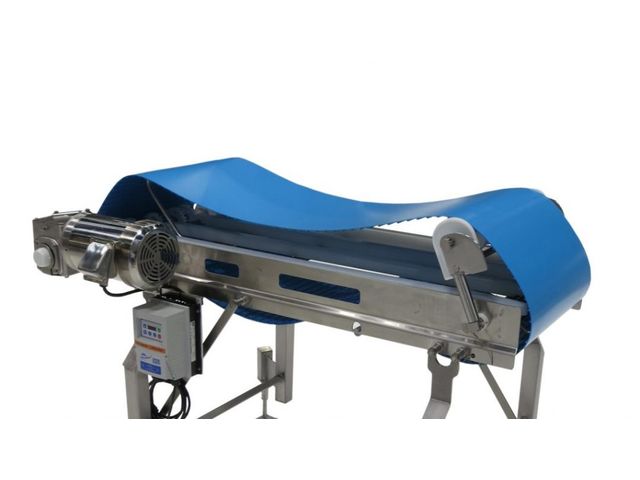

Modular belt conveyor

Ask for a quote Receive Documentation Contact the supplier

Frame is designed with no horizontal surfaces for optimum cleaning.

The Ultimate Series has been engineered for Fast & Effective Sanitation in the most demanding environments. These include facilities where food safety is essential, such as: RTE foods, raw protein (meat – poultry – fish), dairy and other environments with high pressure sanitation requirements.
  • Frame is designed with no horizontal surfaces for optimum cleaning. Conveyors over 10′ long consist of multiple sections which are bolted together (can be welded together on site).
  • Bearings are mounted in cast stainless steel housing for maximum performance in washdown environments.
  • Solid UHMW wear strips are easily lifted out of the frame without tools to minimize cleaning time.
  • The tool-less tip up pulley allows conveyor end to be lifted easily for quick access to inside of conveyor for cleaning.
  • Solid Urethane belt is sprocket driven for consistent performance and has no bacteria harboring hinges or pins.
  • Open Belt Tracking Flanges and solid UHMW idler pucks create access to pulleys.
  • Conveyor is designed to withstand high pressure (100-1,500 psi) spray and chlorinated solutions.
  •  Drive sprockets are located on a 1.5″ square stainless steel shaft without fasteners to provide optimum drive strength and cleanability
  • Frame cut-outs (optional) are available to allow spraying the inside of the conveyor without lifting the belt.
  • Belt lifters (optional) raise the belt from the wear strips by simply pulling an external lever for fast access and effective cleaning.
  • TIG welded stand offs keep fasteners out of the food zone.

​Load: 20 lbs/square-foot of belt Belt widths: 6″ to 36″ Lengths: 36″ to 40′ Belt speed: 233 ft/min maximum Solid urethane belting, includes belt scraper UHMW wear strip bed plate Continuous TIG welded 304 stainless steel frame #4 Polish on all frame surfaces Bearing material is 400 stainless steel Bearing lubricant is H1 type FDA lubricant
