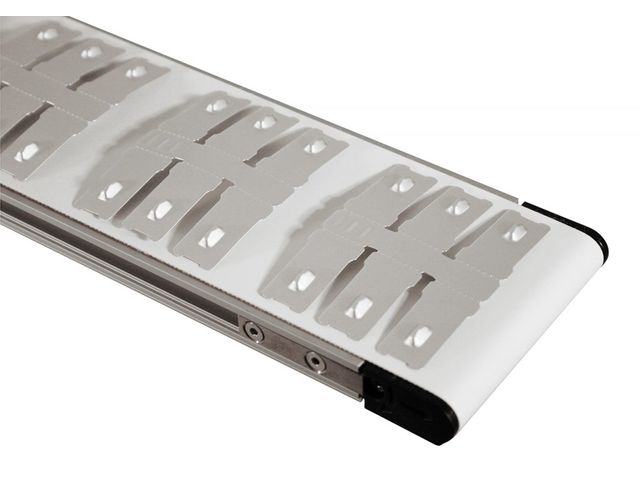

The 1100 Series conveyor platform is the industry’s smallest conveyor with a compact design featuring a 3/4″ frame height. This low profile enables the conveyor to fit into the tightest of spaces, freeing up valuable machine or worker space.
1100 Series Conveyors are best for:
-
Small or light weight product movement
-
Small part transfers
-
Tray handling
-
Pill package handling
-
Package labelling
-
Pharmaceutical Applications
-
Life Science Applications
-
Medical Applications
Benefits of 1X Series
Sizes & Measurements
-
Flat Belt End Drive, or Flat Belt Mid Drive
-
End Drive – 1″ (25 mm) Diameter Drive Pulley
-
Mid Drive – 1.25″ (32 mm) Diameter Center Drive Pulley
-
0.625″ (16 mm) Diameter Idler Pulleys
-
0.31″ (8 mm) Diameter nose bar option for one or both ends
-
Belt Widths: 1.75″ (44 mm), 3.75″ (95 mm), 6″ (152 mm), 8″ (203 mm), & 10″ (254 mm)
-
Conveyor Lengths: 10.63″ (270 mm) to 72″(1829 mm) in 1/8″ (3 mm) increments
-
Loads up to 15 lbs (6.8 kg)
-
Belt Speeds up to 80 fpm (21 m/min)
General Applications
-
Small or light weight product movement
-
Medical
-
Pharmaceutical
-
Life sciences
Features
-
Pinch Drive Design – (patent pending)
-
Low belt tension virtually eliminates belt stretch providing maintenance free operation
-
Belt is tracked continuously with unique frame design, cams, and pinch drive for consistent performance
-
Drive is reversible, providing maximum flexibility in applications
-
Two halve design with one fastener per side allows cover to pivot for fast belt change
-
T-Slot for flexible mounting
-
Spring tensions belt around drive pulley for 180° of wrap
-
Low Profile Height – Compact miniature design frees up valuable machine or worker space
-

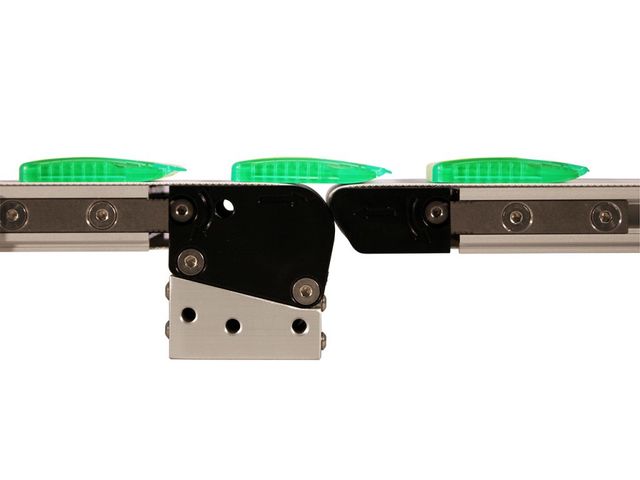

Small Roller Diameter – Optimal size for the handling of small parts and transfer of small parts
-
Clean Room Certified – Class 100 certified for use in medical and pharmaceutical clean room applications
-
T-Slot – Drop in T-bar for ease and flexibility in mounting automation components or accessories
-
Backlit Capability – Backlit conveyor with an LED light is ideal for inspection and quality control
