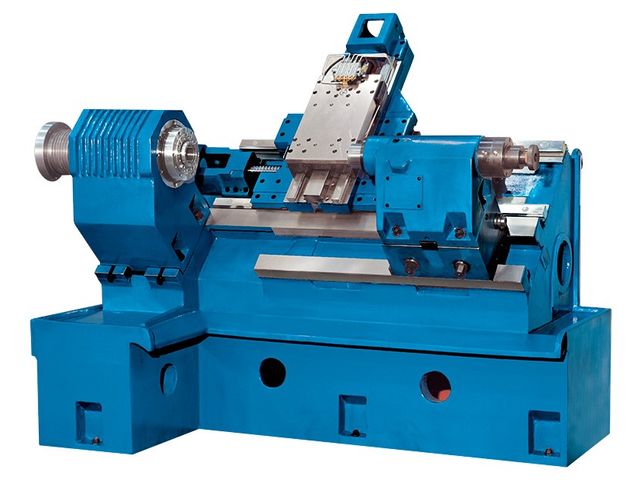

Mono-block cast frame with inclined bed construction combines inherent rigidity with product-specific design
-
Precision linear roller guides on all axes ensure high rigidity, superior resistance and long life
-
Rapid feeds up to 30000 mm/min
-
All axes feature reliable high-torque servo motors
-
Wide, heavily ribbed headstock is designed for high spindle loads
-
Powerful motor supplies ample power reserves for heavy-duty machining
-

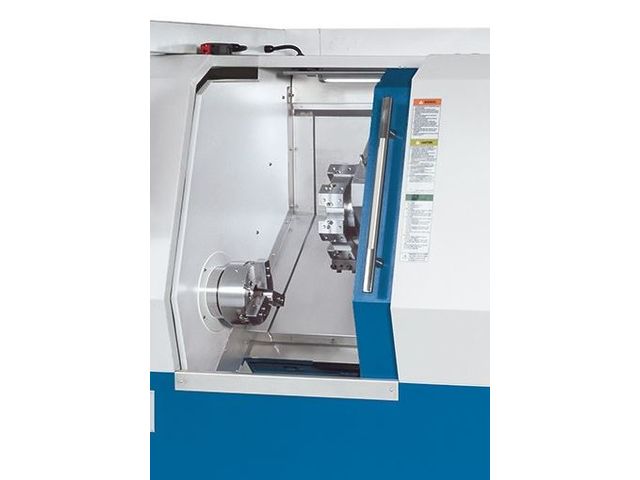

Integrated Productivity: Fast, bidirectional positioning of 12-station VDI tool turret, hydraulic 3-jaw chuck
-
Attractive options: C axis and 12-station VDI tool turret with driven tools expand the performance spectrum by allowing cost-effective complete machining of complex parts
-
Automatic central lubrication, coolant system and chain conveyors extend intervals between maintenance and reduce down-times
-
Including electronic hand-wheel for quick set-up and positioning.
Standard equipement : Control Fanuc 0i-TF (1) with manual guide 0i, electronic hand-wheel, hydraulic VDI 40-tool revolverr, hydraulic hollow 3-jaw chuck 210 mm, foot switch for chuck, programable tailstock, chip conveyor chain type, full enclosed splach guard with CE safety glass, chip tray, coolant system, automatic central lubrication, RS-232 interface, CF Memory Card, work lamp, tailstock with rotation life center rotary quill, Level pads and bolts, fastening bolts, tailstock with rotation life center rotary quill, operating tools, operating manual and programming instructions.
