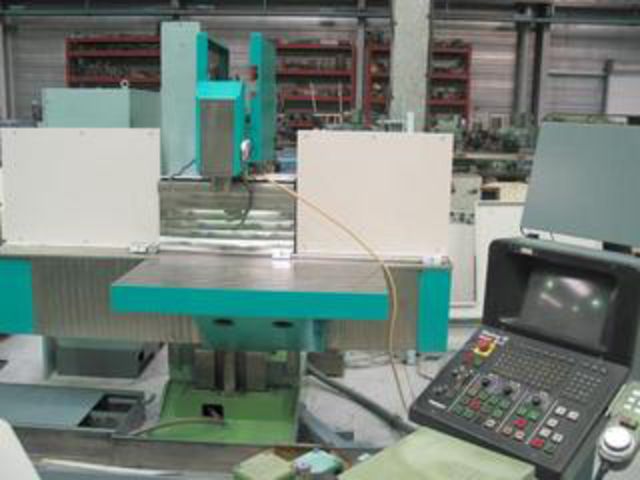

Longitudinal stroke of the table: 1500 mm
-
Cross travel: 700 mm
-
Vertical stroke: 700 mm
-
Surface of the table: 1800x700 mm
-
Spindle cone: SA 50
-
Number of grooves: 6
-
Maximum width of the grooves: 22 mm
-
Max distance between the spindle axis and the table: 740 mm
-
Vertical feeds: 0 to 4000 mm / min
-
Automatic longitudinal and transverse feeds: 0 to 4000 mm / min
-
Fast forward X and Z axis: 10 m / min
-
Fast forward in Y: 10 m / min
-
Spindle speed: 50 to 2500 rpm
-
Numerical control: HEIDENHAIN
-
Fixed bench
-
Engine: 20 hp
-
Approximate weight: 8500 kg
-
Overall dimensions: 3950x2640x2250 mm
Accessories
- Cones with tools,
- RS 232 socket,
- Hydraulic tightening of the tool.
