Overview

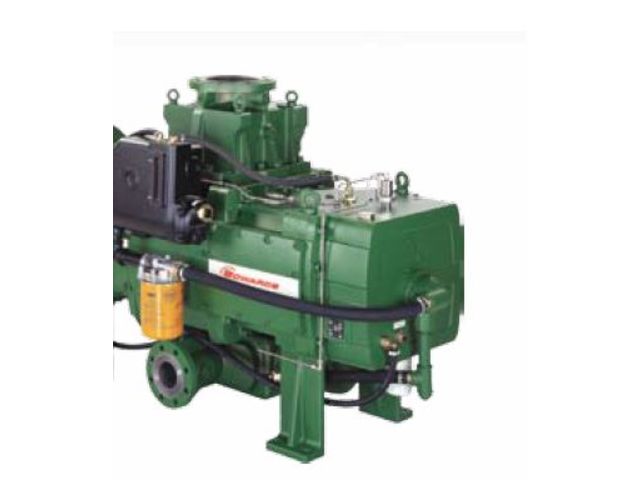

Edwards CDX1000 represents the next generation of dry pump technology. The CDX1000 is a double ended mechanism for the chemical process, pharmaceutical and petrochemical industries.
This innovative technology leverages Edwards latest manufacturing and design philosophies. The CDX1000 is suited to larger processes where repeatability and reliability are key. Technologies and manufacturing techniques have been carefully selected to produce a robust, high performance machine that is simple to operate and maintain.
Technology
Performance with Reliability
-
Outstanding temperature control with Edwards standard indirect cooling
-
Process repeatability
-
Protects pump from thermal shock and corrosion
-
Excellent liquid handling
-
No compression plate = no hydraulic lock
-
Self draining mechanism
-
Dust and particulate tolerant
-
No expansion volumes
-
No cold seizures
-
Extended maintenance period
-
Cooled and filtered oil system
-
No complex controls
Simple, Rugged Design
A robust mechanism for reliable, repeatable performance
-
Double-ended, variable pitch screw
-
Patented stator machining removes the need for a head plate
-
No compression plate
-
Minimal parts count
-
Standard motors
-
No coatings
-
Low rotational speed
Maintainability
The CDX1000 is designed to minimize scheduled down-time from line maintenance to overhaul.
-
Minimized process line disturbance
-
Integral flame arrestors can be cleaned and inspected without breaking process lines
-
Silencers are drainable and cleanable
-
Standard automotive style oil filters
-
Bearing and seal change is possible on-site
-
Recovery philosophy minimizes pump removal
-
Clearances open up on cooling; no cold seizures
-
Rotors do not require costly re-coating
-
Rotors are not assembled as matched pairs
Cool & Clean
The bearings and rotor stub shafts are fed cooled, filtered oil. Limiting the oil temperature prevents carburization and degradation.
-
Extended bearing and seal life
Systemization Tailored To Match Your Process Needs
-
Low cost, pre-engineered modules
-
Customized systems
-
Tailored applications support
-
Avoid problems
-
Solve issues if they arise
-
Applicable to a wide range of processes
-
Match performance to process
-
Monitoring and control options
-
Dust, hard particle and liquid carry-over protection
