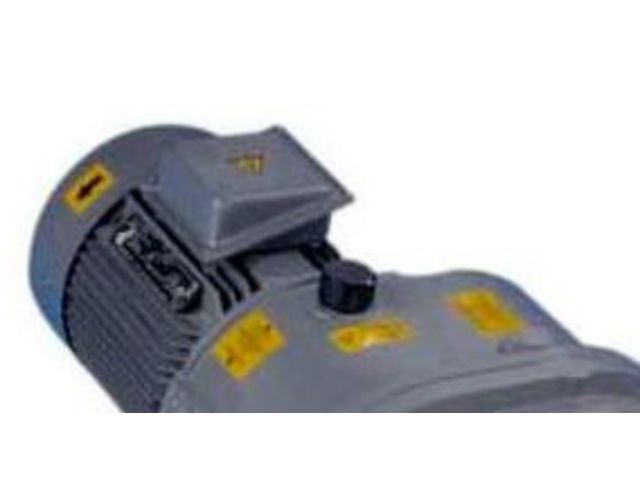

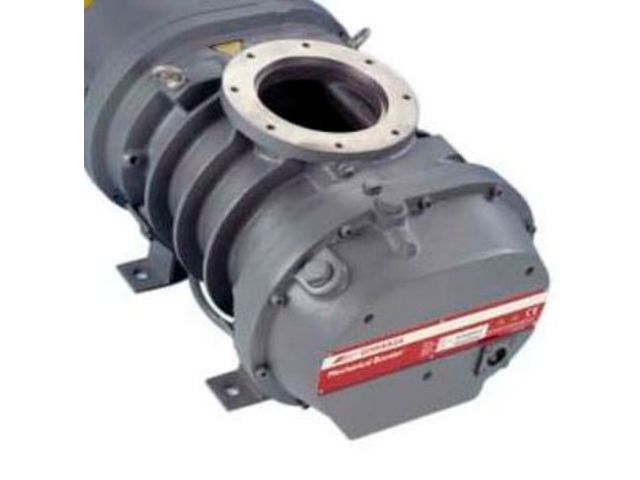

EH Mechanical Booster Pumps EH1200C 230/460V, 3-ph, 60Hz, 4 hp

Overview The EH mechanical booster pumps feature the unique hydrokinetic drive, providing an efficient power transmission with benefits in economy, performance and compactness. The hydrokinetic drive provides pump down times cut by 50%, when compared with direct drive pumps, no bypass lines or pressure switches required, universal voltage motors, reduced capital and operating costs, air cooled motors – with water cooled options, and quiet, minimum vibration.

 The EH mechanical booster pumps, based on the simple Roots principle, remain the favourite pumps for applications where high pumping speeds over 3000 m³h^?1/1776 ft³min^-1 are required in the pressure region of 0.01 to 50 mbar/0.0075 to 37.5 Torr. These must always be backed by another pump which can deliver against a high pressure differential to atmospheric pressure. Operating at relatively low pressures, the mechanical booster pump is not exposed to the same concentrations of corrosive process media as is the backing pump, which makes it highly reliable.

Technology EH pumps with hydrokinetic drive

EH booster pumps have a unique and patented hydrokinetic fluid drive, which couples the motor to the pumping mechanism. The hydrokinetic drive offers the following advantages:

• Pump down times cut by up to 50%
• Reduced capital and operating costs
• No pressure sensors, by-pass lines or valves
• Can operate continuously at all pressures when used with a backing pump

EH booster pumps have universal voltage, air-cooled motors and are available with effective pumping speeds (at 50 Hz) of up to 3100 m³h^-1. The pump bodies of the EH1200, EH2600 and EH4200 pumps are water-cooled.


Pump-down times cut by up to 50%

The hydrokinetic drive allows the booster pump to be started at the same time as the backing pump (at atmospheric pressure) as it prevents motor overload. The EH booster pump therefore assists the pumping process from the start of pump-down. In comparison pumping systems with conventional, direct drive mechanical booster pumps (where the booster pump is switched on when the chamber pressure has been reduced to, typically, less than 10 mbar), the total evacuation time can be reduced by as much as 50%.

Automatic overload protection

The hydrokinetic drive automatically varies the rotational speed of the pump. This protects the motor from overload, prevents over-heating, and allows the pump to operate with high-pressure differentials. Consequently, EH booster pumps are not damaged by sudden increases of inlet pressure and even by the entry of solid debris into the pump.

Important cost savings

When you use EH mechanical booster pumps, you save money on installation and operation. Your capital costs are reduced as you do not need valves, by-pass lines and pressure switches, and you can use a smaller backing pump than with conventional drive booster pumps. Operation costs are reduced because EH booster pumps have smaller motors than direct drive pumps and, when operating at full speed, they use only a fraction of the rated power.
