Presentation

Robot for Pick & Place Applications

The robot for cost-efficient pick & place applications at clamping forces of 20 to 200 t. – Especially developed by WITTMANN for this purpose of use. This device is an adapted version of the W818.

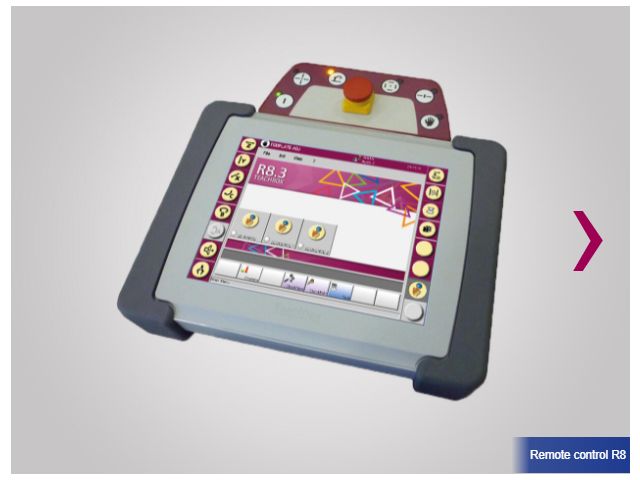

Control: CNC8 control with TeachBox R8.3.
Servo motor drives for all three main axes.
Optimized drives – with regard to using the robot with pick & place applications.
Extremely smooth operation with lowest noise.
Minimum part removal times are essential for the highest productivity of the automation cell, e.g. when producing thin wall components.
The vertical arm is stiff but lightweight ribreinforced aluminum profile, driven via belt by a servo motor, thus reducing the moving mass.
