WITTMANN BATTENFELD France

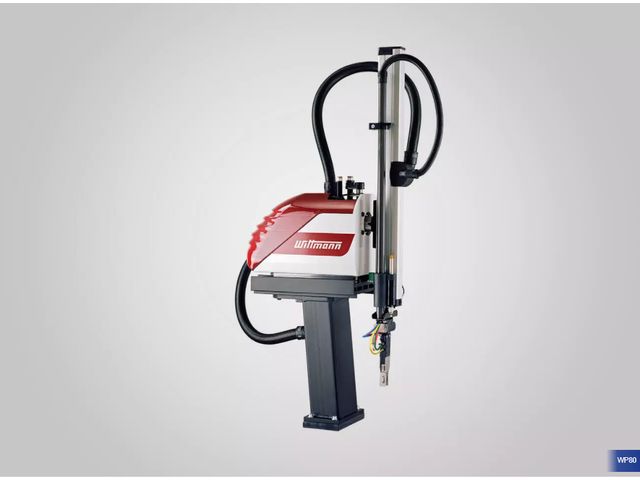

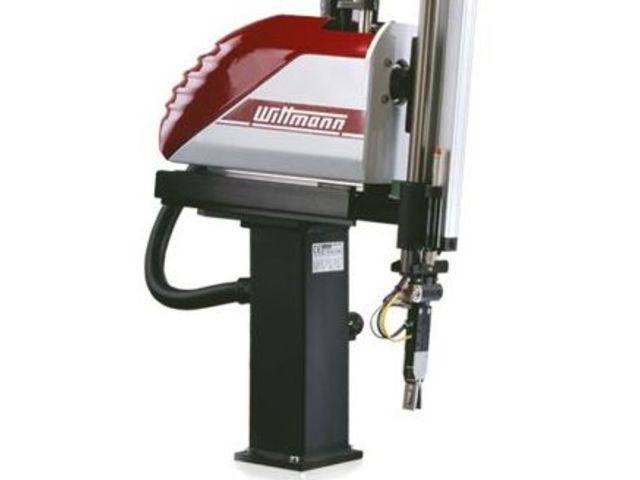

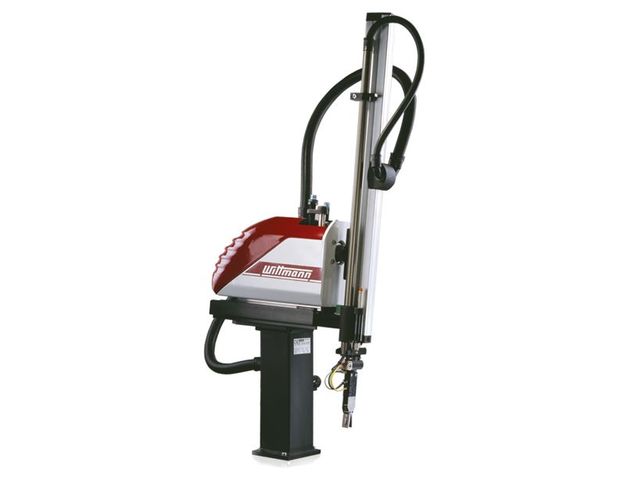

Sprue picker : WP80

Cartesian robots

Ask for a quote Receive Documentation Contact the supplier

The solid construction allows fast movement with low vibration for precise removal.
X-axis (kick-stroke)
  • Heavy-duty linear rails and recirculating ball bearings.
  • Swivel base to rotate the arm behind the fixed platen for mold changes and locating pin to precisely reposition arm for part removal.

 Y-axis (vertical stroke) 0–550 mm (21.7“) or 700 mm (27.6")

  • Adjustable stroke.
  • Pneumatic shock absorbers.
  • Locking cylinder to prevent the arm from drifting down into the mold in the event of air pressure loss.
  • The Y-axis is also equipped with a heavy-duty switch as an additional interlock before the mold can close.
  • Energy chain for less wear of tubing.

 Z-axis (pivot)

  • Freely adjustable from 45°–95°.
  • Simple changeover from rear side to operator side placement.

 B-axis (90°C tooling rotation)
Rotation is made automatically when pivoting the Z-axis out of the press.

Mechanical Sprue Gripper
With part monitoring.

13/04/2023

Demande de devis pour pique-carottes pour des presses de 25 à 300 tonne

OTHER PRODUCTS CARTESIAN ROBOTS FROM WITTMANN BATTENFELD France

Cartesian robot / 3-axis / pick-and-place / high-speed Primus 16

Cartesian robot / 3-axis / pick-and-place / high-speed Primus 16

Ask for a quote

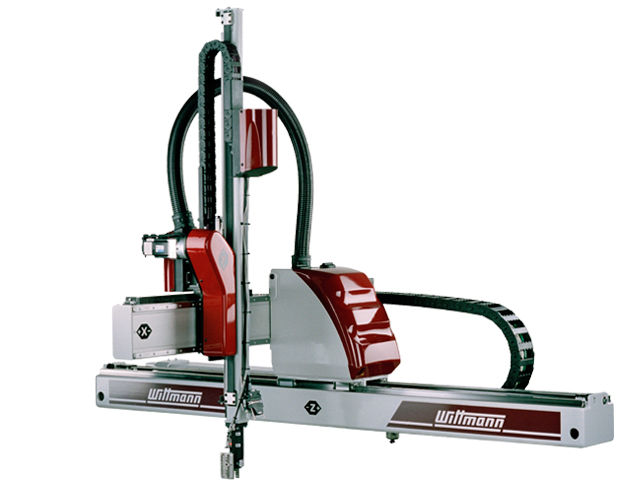

Cartesian robot / 3-axis / for injection molding machines / industrial - W808

Cartesian robot / 3-axis / for injection molding machines / industrial - W808

 Ask for a quote
Cartesian robot / 3-axis / for injection molding machines / industrial - W 818

Cartesian robot / 3-axis / for injection molding machines / industrial - W 818

Ask for a quote
Cartesian robot 3-axis compact for injection molding machines : W 823

Cartesian robot 3-axis compact for injection molding machines : W 823

Ask for a quote
Cartesian robot / 3-axis / wall-mounted / for injection molding machines : W853, W873 series

Cartesian robot / 3-axis / wall-mounted / for injection molding machines : W853, W873 series

 Ask for a quote
Servo picker for the space-saving removal and separation of sprues WS80

Servo picker for the space-saving removal and separation of sprues WS80

Ask for a quote

Check out all the products from cartesian robots from WITTMANN BATTENFELD FRANCE

INTERNET USERS ALSO CONSULTED ON THE CATEGORY CARTESIAN ROBOTS

SC7 HUMARD® compact robot for CNC machines, side access

SC7 HUMARD® compact robot for CNC machines, side access

 Ask for a quote
ROBOT Compact fitted on CNC Bumotec S-191

ROBOT Compact fitted on CNC Bumotec S-191

 Ask for a quote

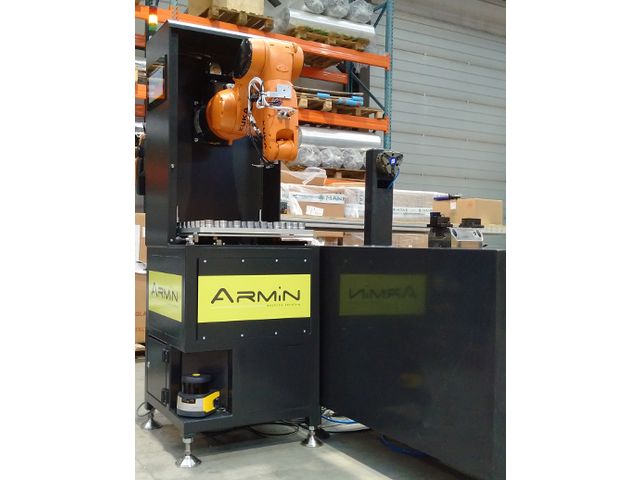

ARMIN robot for CNC machines automation - NANO Serie
