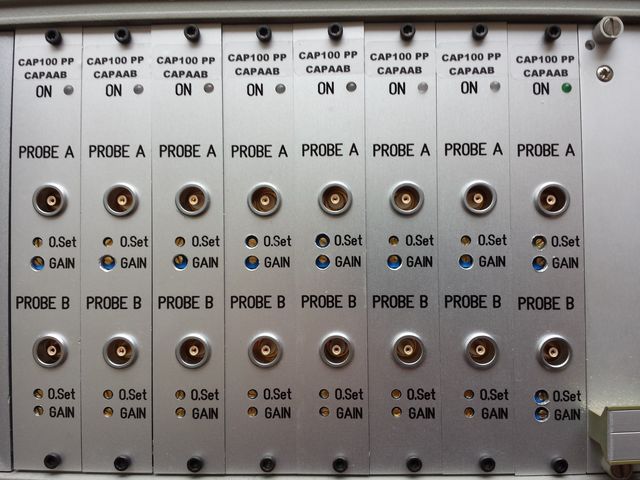

Capacitive conditioning unit industrial casing (1 / 2 / 4 channels) : CAP 100 & CAP 100 / 2 / 4

Capacitive conditioning unit industrial casing (1 / 2 / 4 channels) : CAP 100 & CAP 100 / 2 / 4 - CAPAAB

Capacitive conditioning unit industrial casing (1 / 2 / 4 channels) : CAP 100 & CAP 100 / 2 / 4

Ask for a quote

Presentation

• Measuring range : from 0→ 0.5 mm to 0 → 12 mm according to the diameter of the sensor electrode used

• Linearity : < +/- 0.5 % (F.S.O) of the probe range.

• Temperature drift (/ °C) < 0.005 % (F.S.O) of probe range

• Frequency range (-3dB) : 0 to 20 kHz typical

• Dynamic resolution at maximum probe distance : 0.15 µm with 1Hz analysis bandwidth and 15 µm with 10 kHz bandwidth (no averaging)

• Measurement output : 0 / +10V linear variation Vs distance or capacitance

(selection when ordering)

• Offset adjustement: FROM 0 to -10V (on option)

• Power :5 watt ; 230 Vac or 12 to 24 V DC (selection when ordering)

• Packaging : Industrial casing IP 64 (dimensions : 180*135*70 for 1 channel unit)

• compatible with CAPAAB or other brand capacitive triaxial probes

(Temperature range: from -270°C to +800°C)

INTERNET USERS ALSO CONSULTED ON THE CATEGORY THICKNESS MEASUREMENTS

Motor-Operated Thickness Measuring : Model 510

Ask for a quote

Non-contact measurement of thickness and width of coils - Industrial CFC thickness measurement system

Ask for a quote

Universal confocal controller with one and two channels

Ask for a quote

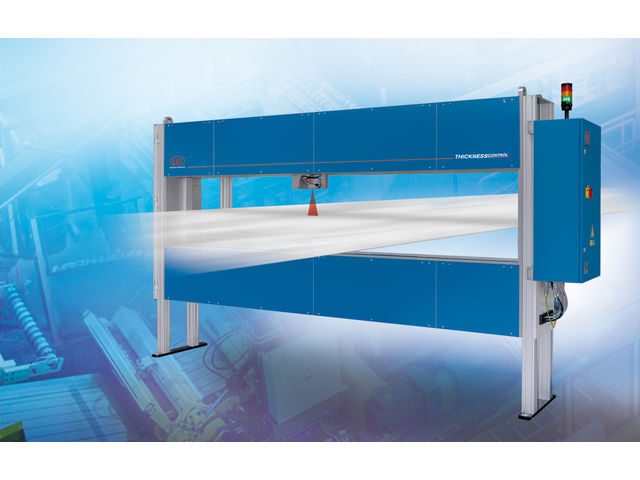

New thickness measurement system based on confocal sensors - thicknessCONTROL UTS 8X02.K
