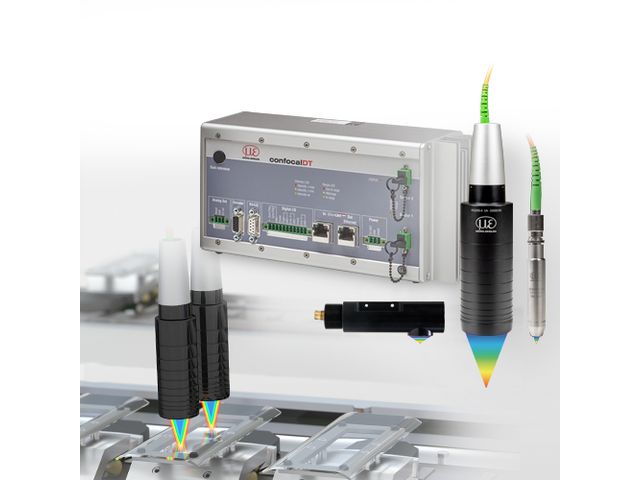

The confocalDT product range stands for highest precision and dynamics in confocal chromatic measurement technology. The measuring system includes the fastest controller currently available, enabling high precision measurement results in displacement and distance measurement tasks, as well as thickness measurement of transparent objects. A large number of sensors and different interfaces can be used in versatile measurement tasks, e.g. in the semiconductor industry, glass industry, medical engineering and machine building.
High precision displacement and distance measurement on practically all types of surface
The confocal chromatic measuring principle enables high precision displacement and distance measurements – including on diffuse and reflecting surfaces. Very small objects can be detected due to the small measurement spot size. The axial beam path avoids shadowing effects, enabling measurements even in sleeves and recesses. With the 90° version, geometrical features can be measured inside holes and recesses.
One-sided thickness measurement of transparent materials
The confocal chromatic measuring principle enables thickness measurements of transparent materials such as glass. The thickness value is detected to micrometer accuracy using only a single sensor. The controller provides an editable, expandable materials database. Material-specific parameters such as refractive indexes can be adapted using the web interface. Multi-peak measurements enable the evaluation of up to 6 peaks, which is how multi-layer objects such as laminated glass can be measured.
Glass Industry
Plastics Production
Medical Engineering
Semiconductor Industry
