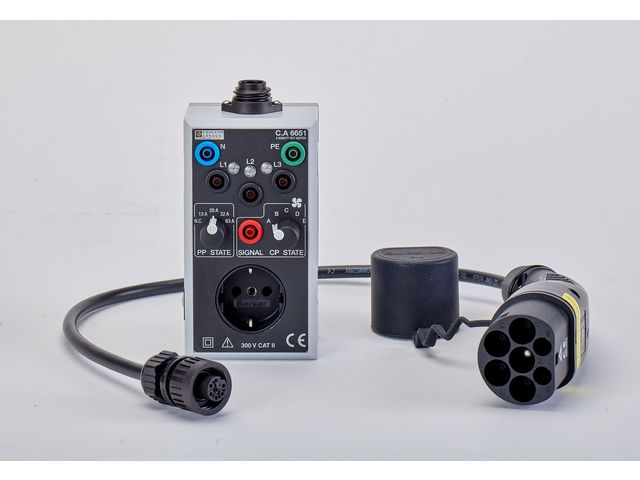

CA 6651 | test adapter for electric vehicle charging stations

CA 6651 | test adapter for electric vehicle charging stations - CHAUVIN ARNOUX

CA 6651 | test adapter for electric vehicle charging stations - Tester

CA 6651 | test adapter for electric vehicle charging stations - produit présenté par CHAUVIN ARNOUX

CA 6651 | test adapter for electric vehicle charging stations

Tester

Ask for a quote

Presentation

<span style="color: rgb(85, 85, 85); font-family: " open="" sans",="" "lucida="" grande",="" sans="" unicode",="" arial,="" sans-serif;="" font-size:="" 11px;"="">To check that the signal is transmitted correctly between the charging station and the CA 6651, you need to use a handheld oscilloscope such as the Handscope (signal waveform, amplitude, pulse width, etc.)

Technical features

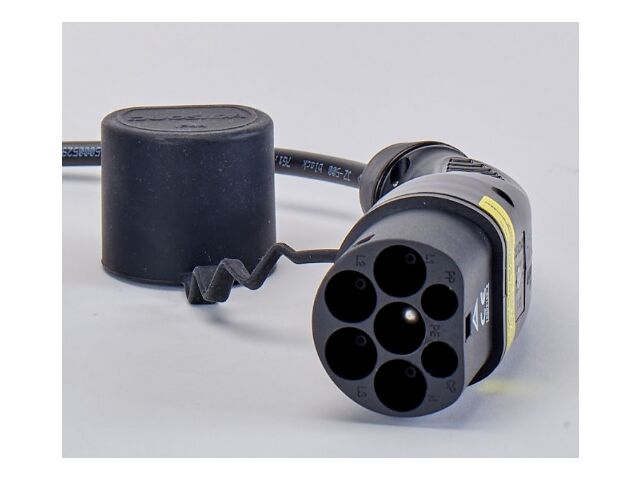

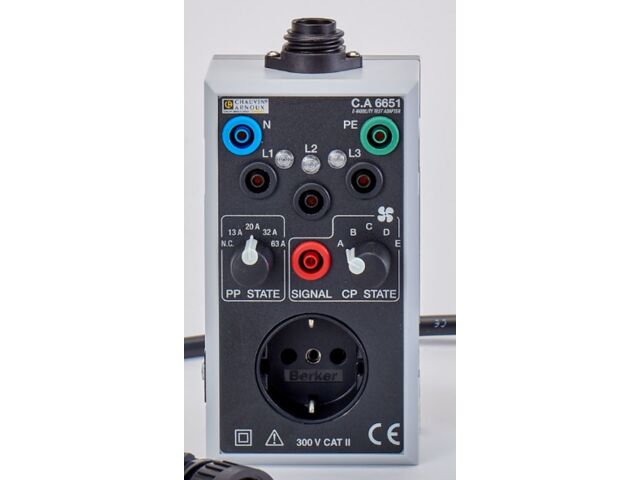

Test adapter for mode-3 AC charging stations equipped with a type-2 cable Simulation of vehicle status (CP signal) Switching between the different charging currents from 13 to 63A (PP status) Connection to view the status of the signal (CP) PE pre-test to check that no hazardous voltage is present in relation to the PE earth Presence of phases L1/L2/L3 indicated by 3 LEDs
