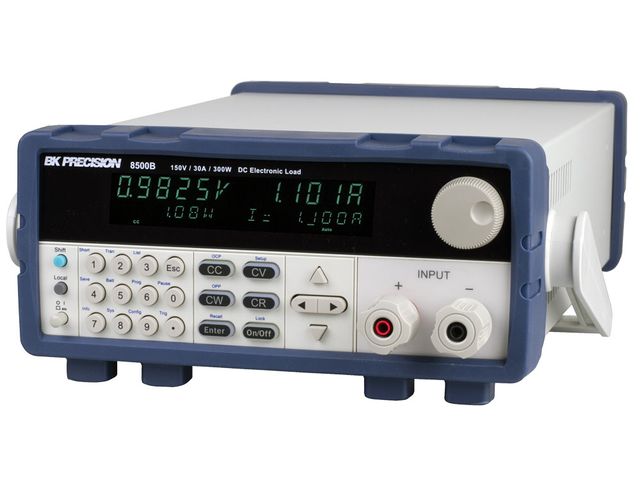

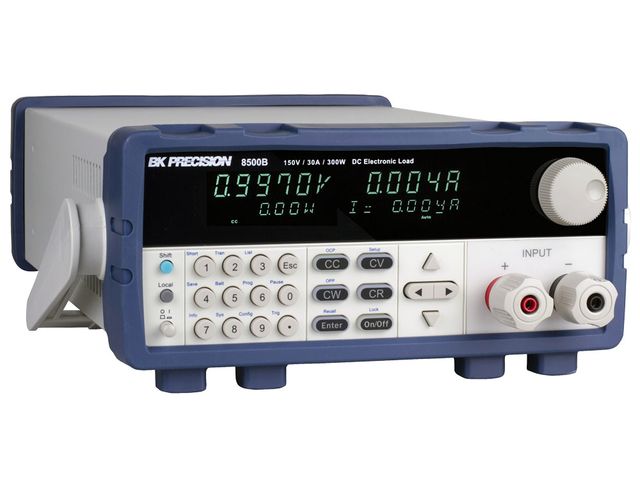

300W Programmable DC Electronic Load,120V/30A, USB interface | Model BK8500B

300W Programmable DC Electronic Load,120V/30A, USB interface | Model BK8500B - SEFRAM INSTRUMENTS ET SYSTEMES

300W Programmable DC Electronic Load,120V/30A, USB interface | Model BK8500B - Tester

300W Programmable DC Electronic Load,120V/30A, USB interface | Model BK8500B - produit présenté par SEFRAM INSTRUMENTS ET SYSTEMES

300W Programmable DC Electronic Load,120V/30A, USB interface | Model BK8500B

Tester

Ask for a quote

Presentation

The 8500B Series programmable DC electronic loads improve upon all aspects of its predecessor while maintaining dependability at a value price. This series supports both SCPI and the backwards compatible legacy protocol and includes a TTL to USB interface adapter for easy system integration.

With a transient mode speed of up to 10 kHz and multi-type input terminals for banana plug or spade connectors, these DC loads are suitable for testing and evaluating DC power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays.

Maximum input power up to 600 W
CC/CV/CR/CW operating modes
Transient mode up to 10 kHz in CC mode
16-bit voltage and current measurement system with up to 0.1 mV / 0.1 mA resolution
List mode and adjustable slew rate in CC mode
Short circuit test
Built-in battery test function with voltage level, capacity level, and timer stop conditions
CR-LED mode to simulate the loading behavior of typical LEDs
Remote voltage sensing to compensate for the effect of voltage drop in wires
Analog current control and monitoring

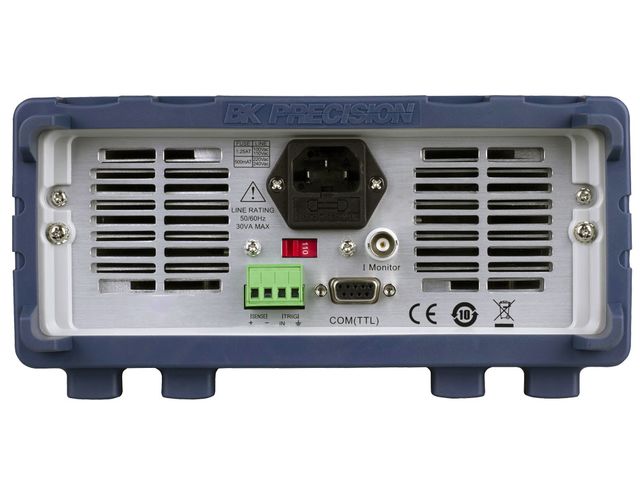

TTL (DB9) interface, includes TTL to USB adapter
OVP/OCP/OPP/OTP and local/remote reverse voltage (LRV/RRV) protection
