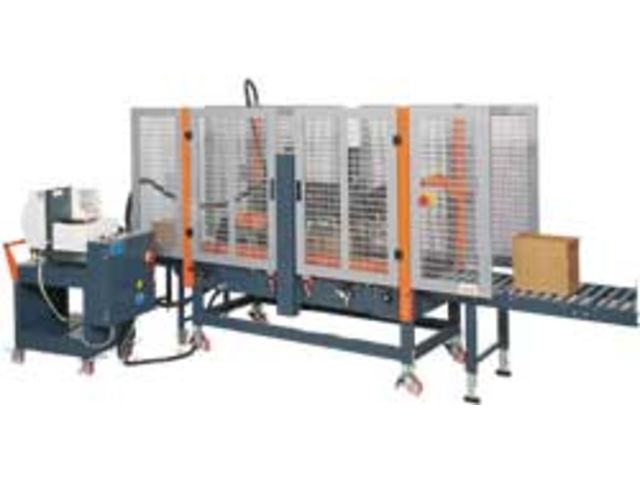

Automatic carton sealer : HM11 & HM11/TB

Automatic top carton flaps folder device.

Manual adjustment on the different carton sizes (width-high-length) by handles.

Side motorised driving belts (2 x 75 mm wide each) – Motors 0,18 HP each

Adjustable Working High 500 – 750 mm.

Top (or Top+Bottom) gluing unit spreading the glue on the top (or Top+Bottom) cartons flaps while boxes are passing through the HM11, before top flaps folding.

For the HM11/TB only: Bottom gluing unit allowing minimal bottom flaps opening to spread the glue while the boxes are passing through the machine and then closing the bottom flaps while the top are also folded.

Once glued the boxes are kept pressed to allow a proper adhesion.

Hot-Melt generator (ROBATECH – Standard, other brands on request) on an independent trolley with casters with 5 Kg thank, tube and gun with four spreading valves included on the top (HM11 version) and identical on the bottom in the HM11/TB version.

Generator allows glue temperature & volumes
Sealing programmes to be memorized and recall
Timer setting to allow pre-heating adjustment
Box dimensions adjustment
