Automatic cable reels- Special uses- ATEX Range

Electric roller

“ Delivered without cable in input ”

Ask for a quote

Presentation

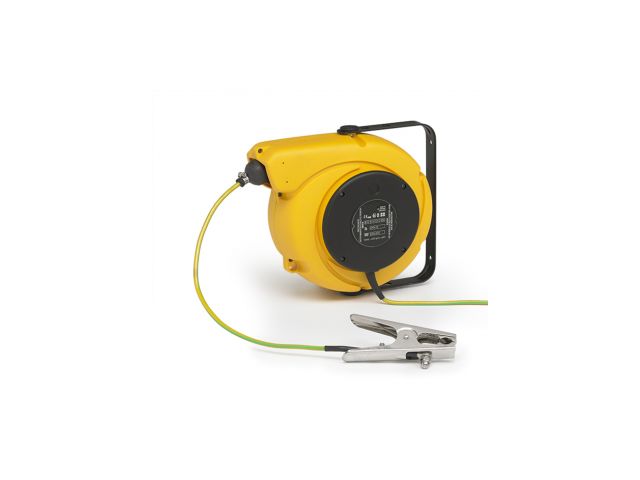

ATEX cable reel + ATEX clamp

- Delivred with 5 meters cable in input
- Marking according to the directive CE94/9/CE II 2G / II 2D
- EC type examination certificate BVS 10 ATEX E 84
- The other features of our automatic cable reels are the ones of the PLT800 range (ERATX0110-20P-P8) and PLT600 range (ERATX0110-10P-P6)

Cable reel delivered with :
- 20 meters cable 1x10mm²
- Clamp: opening up to 45 mm
Code ERATX0110-20P-P8

Cable reel delivered with :
- 10 meters cable 1x10mm²
- Clamp: opening up to 45 mm
Code ERATX0110-10P-P6

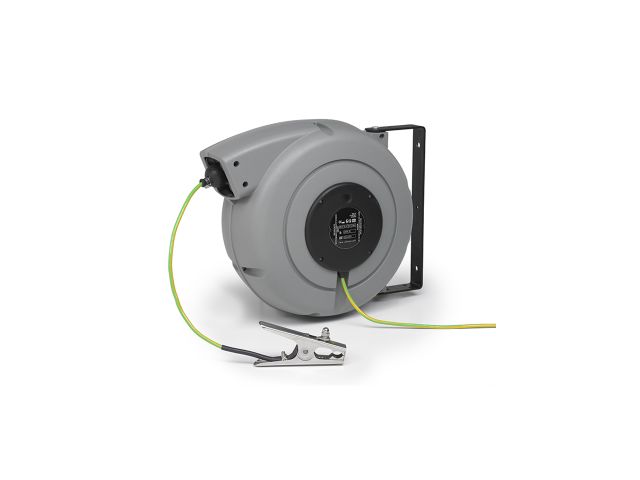

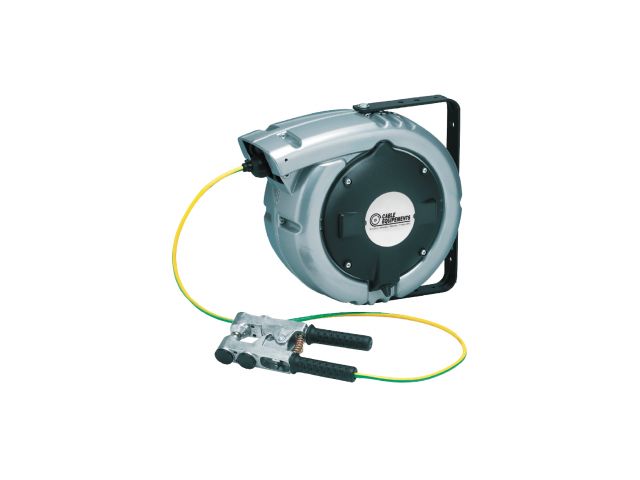

NON ATEX cable reels + ATEX clamp

- Delivered without cable in input
- Install the reel in "safety zone" according to 99/92/CE
- Unipolar cable 1x6mm² H05V-F with yellow and green colour
- The other features of our automatic cable reels are the ones of the PLT600 range (ERATX0106-14V-P6) , ALU700 (ERATX0106-26V-A7) and ALU700/65
range (ERATX0106-24V-A7/65).
Type PLT600 - Length 12.5+1.5m - Pawl Removable - IP 42 - Code ERATX0106-14V-P6
Type ALU700 - Length 24+2m - Pawl To insert - IP 42 - Code ERATX0106-26V-A7
Type ALU700/65 - Length 24+2m - Pawl To insert - IP 65 - Code ERATX0106-26V-A7/65
