ARC TRACKER® DATA MONITOR K3019-1

ARC TRACKER® DATA MONITOR K3019-1 - LINCOLN ELECTRIC

ARC TRACKER® DATA MONITOR K3019-1 - Stand-alone welding unit

ARC TRACKER® DATA MONITOR K3019-1 - produit présenté par LINCOLN ELECTRIC

ARC TRACKER® DATA MONITOR K3019-1

Stand-alone welding unit

Ask for a quote

Presentation

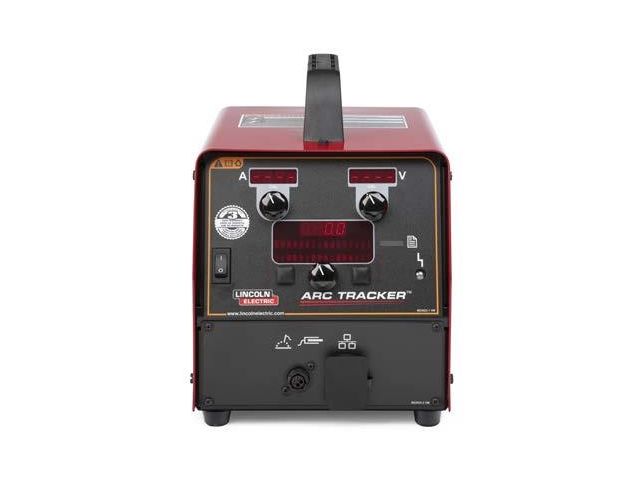

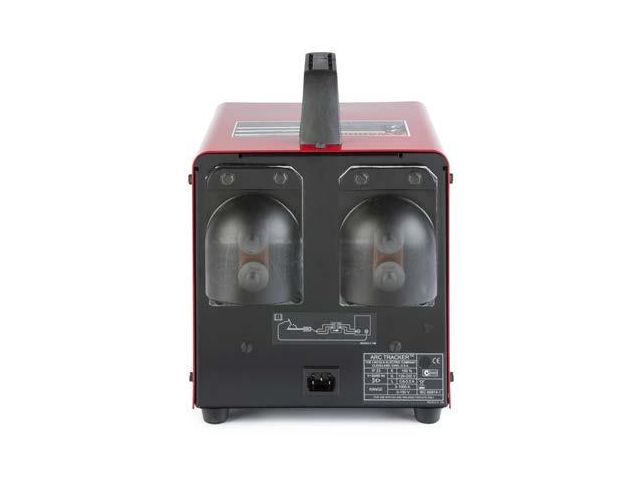

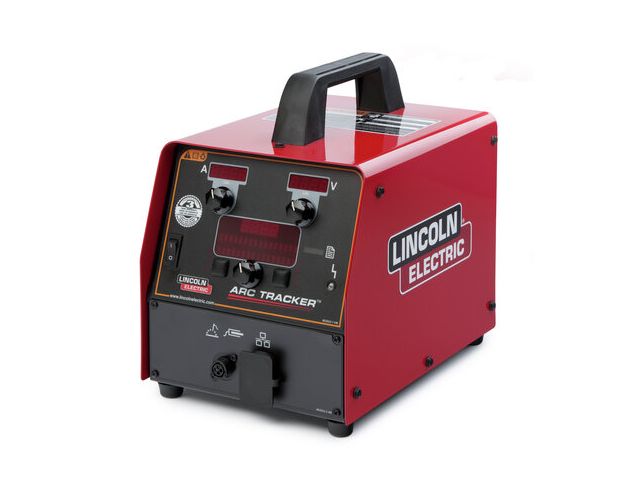

The ARC TRACKER® is a high-performance, portable product designed to accurately measure the True Energy delivered into a weld from any welding machine (DC process only). The ARC TRACKER® will accurately measure the welding parameters (arc voltage, arc current, and weld time) and provide a real-time calculation of the True Energy into the weld. While welding, the True Energy [in joules (J)] for the weld will be accurately displayed on the user interface..

Accurately Monitor Welding Parameters - Advanced digital controls sample the welding parameters at extremely high speeds.
Broad Compatibility - Compatible with any DC welding process power source and wire feeder
Simple Plug-n-Play Design - Connect to any DC welding circuit.
Variable Input Voltage - The Arc Tracker® auto-senses any input voltage between 120 – 230 volts AC.
Ethernet Connection - Communicates weld data status to your network via standard Ethernet.
