ABES Bollard 055-1

Street terminal

ABES Bollard 002 is a bollard made from cast aluminium with a triangular base and a sphere set on top. The bollard tapers towards its center. Mounting Removable with 3p-Technology, comprising a ground...

Ask for a quote

Presentation

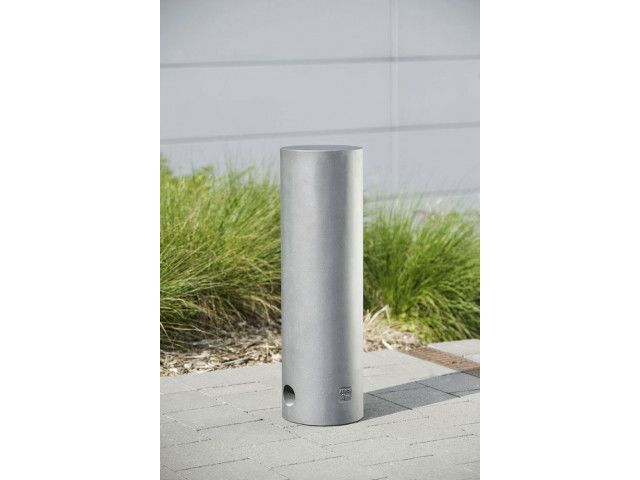

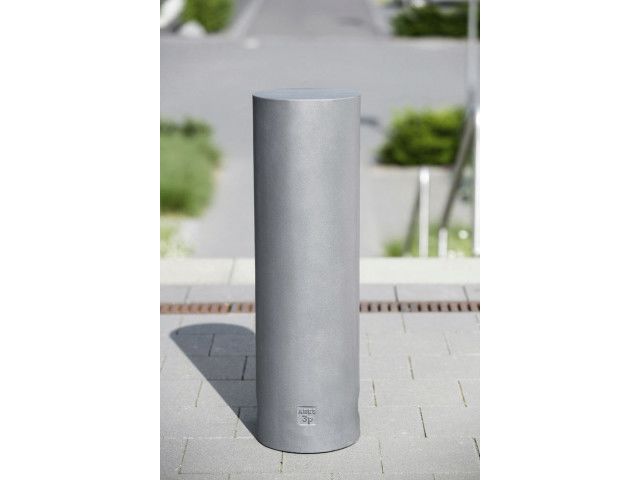

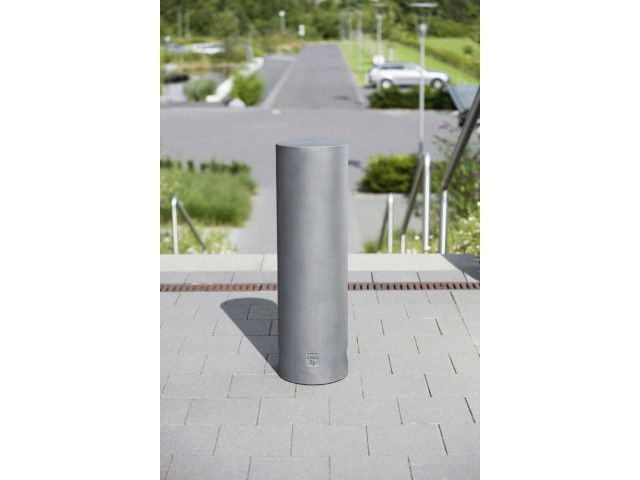

ABES Bollard 055-1 is a cylindrical bollard made from cast aluminium with a flat top. Mounting Removable with 3p-Technology, comprising a ground shell, a junction piece with integrated breaking point, two clamping cones and a hex head bolt. Alternatives: concrete embedment. Finish – Powder coating in standard RAL colours or DB 703. – CAN ALSO BE USED AS SEATING BOLLARD – ALSO AVAILABLE AS LIGHTING BOLLARD The basic package for ABES Bollard 055-1 with 3p-Technology contains: – The bollard, cast aluminium, powder coated in RAL, DB 703 Glimmer grey – Measurements (H above the ground x Ø in mm): 600 x 180 – Ground shell 300 mm (000.001), cast iron, galvanised – Junction piece (000.008), cast iron, galvanised – clamping bolt set, hex head (N1+N2+hex-screw), stainless steel 1.4301 (000.004)
