ABES Bollard 042

Street terminal

Ask for a quote

Presentation

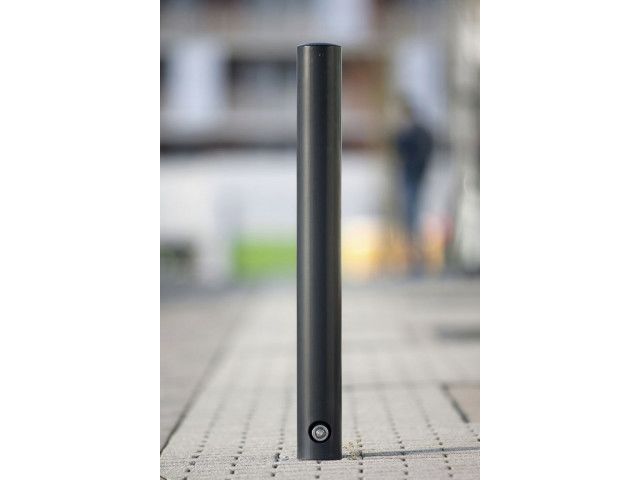

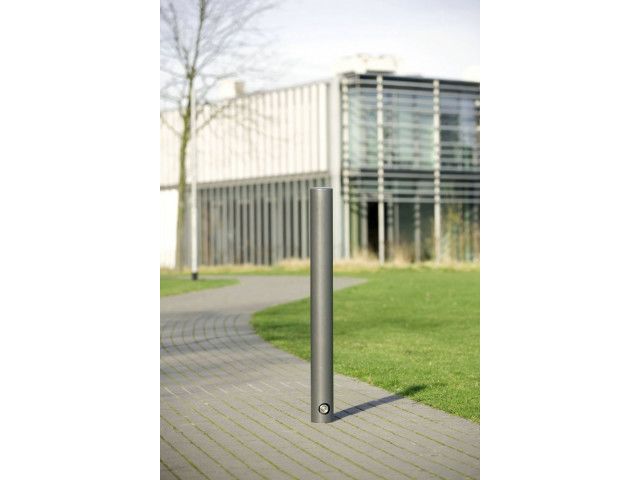

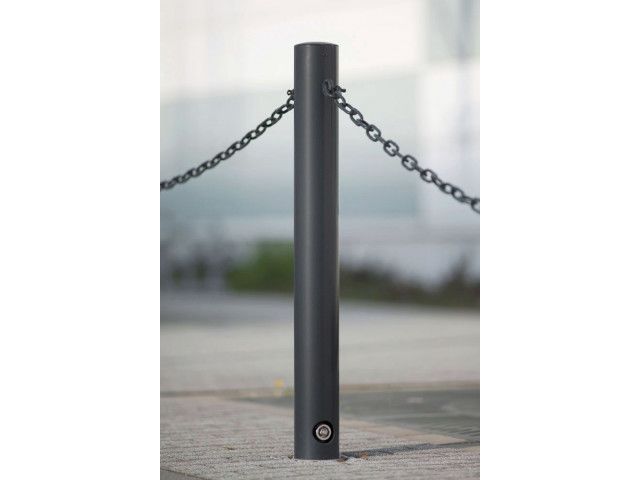

ABES Bollard 042 is a cylindrical galvanised steel bollard with a slightly domed top. Mounting Removable with 3p-Technology, comprising a ground shell, a junction piece with integrated breaking point, two clamping cones and a hex-head bolt. Alternative: concrete embedment. Finish – Stainless steel 1.4301, pickled. Smoothed or electropolished finish to customer’s requirement (high-gloss) – surcharge. – Powder coating in standard RAL colours or DB 703. – Steel ST37: other lengths available to customer‘s wishes (with surcharge or discount). The basic package for ABES Bollard 042 with 3p-Technology contains: – The bollard, ST37 steel / stainless steel 1.4301, powder coated in RAL or DB 703 Glimmer grey – Measurements (H above the ground x Ø in mm): 1000 or 1.200 x 108 – Ground shell 300 mm (000.001), cast iron, galvanised – Junction piece (000.008), cast iron, galvanised – clamping bolt set, hex head (N1+N2+hex-screw), stainless steel 1.4301 (000.004)
