ABES S.à r.l. Public Design

ABES Bollard 013

Street terminal

Ask for a quote Receive Documentation Contact the supplier

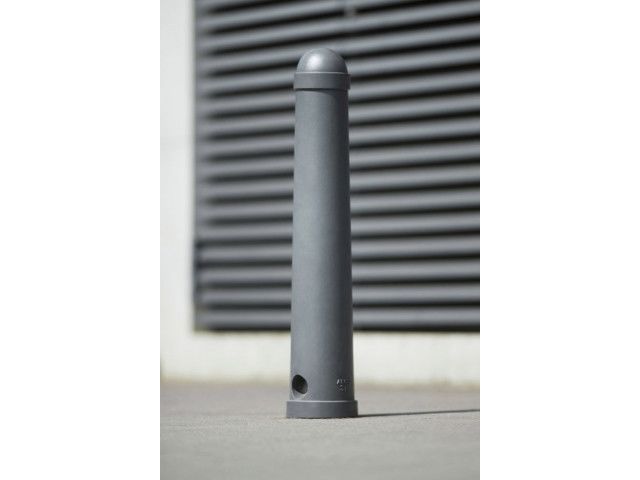

ABES Bollard 013 is a slightly cone-shaped bollard made from cast aluminium with a circumferential ring which optically separates the top from the rest of the bollard, and a second broader circumferential ring at the base. Mounting Removable with 3p-Technology, comprising a ground shell, a junction piece with integrated breaking point, two clamping cones and a hex head bolt. Alternative: concrete embedment. Finish – Powder coating in standard RAL colours or DB 703. The basic package for ABES Bollard 013 with 3p-Technology contains: – The bollard, cast aluminium, powder coated in RAL, DB 703 Glimmer grey – Measurements (H above the ground x Ø in mm): 820 x 125/160 – Ground shell 300 mm (000.001), cast iron, galvanised – Junction piece (000.008), cast iron, galvanised – clamping bolt set, hex head (N1+N2+hex-screw), stainless steel 1.4301 (000.004)

Download the complete technical features
