ABES Bicycle Stand 473

Cycle stand

Ask for a quote

Presentation

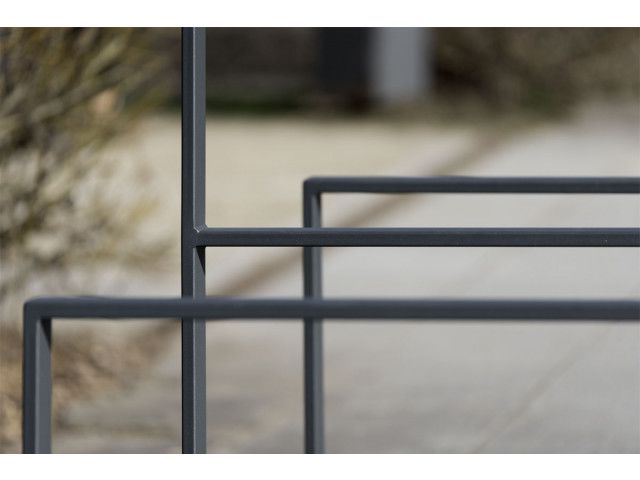

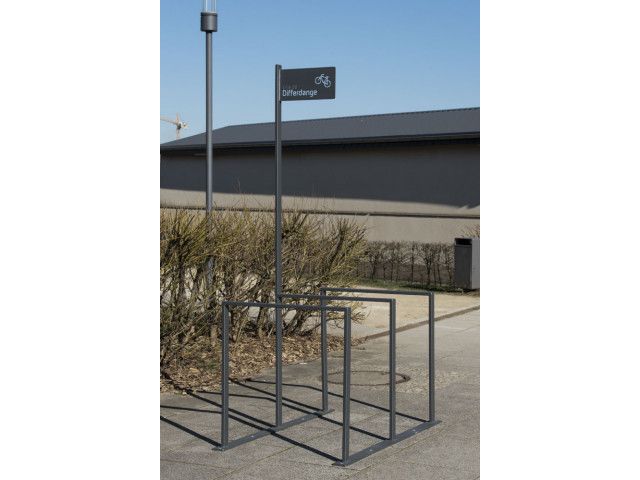

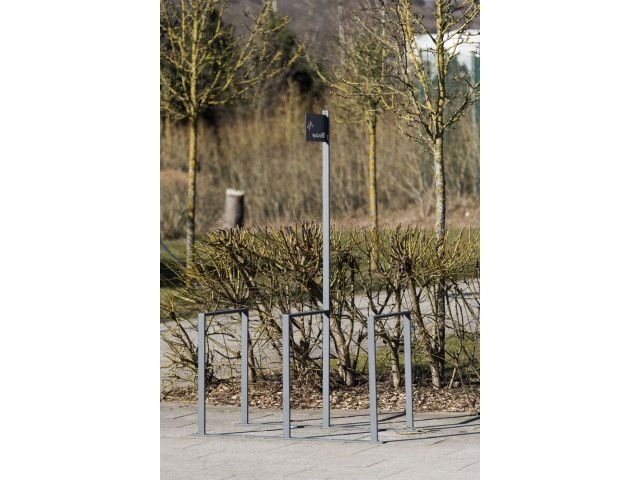

ABES Bicycle-Stand 473 are two, three or four adjacent 453 bike rails made from perpendicular steel profiles (50 × 20 mm), welded onto two flattened steel bars. Other profile dimensions, heights and widths are available upon request at a surcharge. Mounting Screw-on Finish – Stainless steel 1.4301 pickled and smoothed, grain 240. Optional: electropolished/high-gloss (no surcharge) – Steel ST37, galvanised with powder coating in standard RAL colours or DB 703 – Other colours available on request at a surcharge – Also available with LED strip on the underside of the cross tube or with knee rail ABES Bicycle-Stand 473 overview: Bicycle Stand, steel ST37, galvanised/powder-coated or stainless steel 1.4301 – Rectangular profile 50 × 20 mm mitre-cut, welded onto two flattened steel bars – Height above ground: 860 mm – Width (rail): 820 mm – Length: 750 (2) / 1.450 (3) / 2.100 (4) mm

Technical features

Download the complete technical features
