ABES Bicycle Stand 470

Cycle stand

Ask for a quote

Presentation

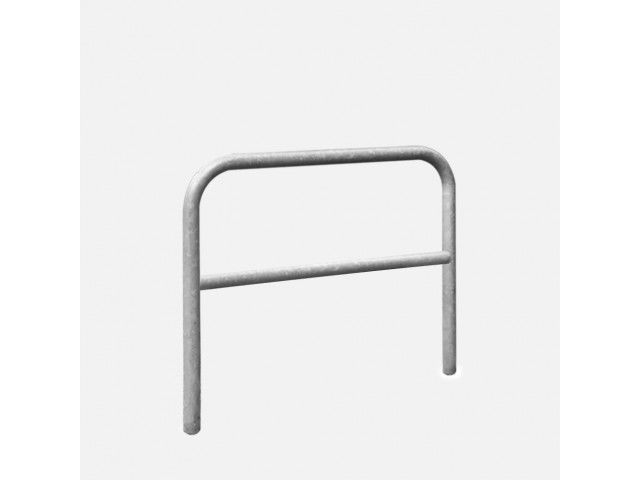

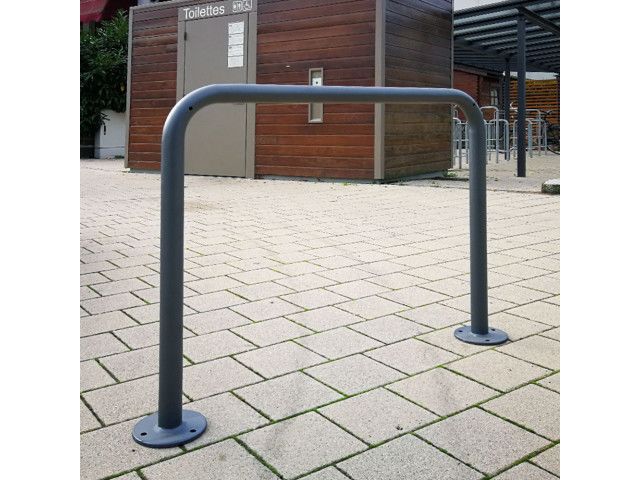

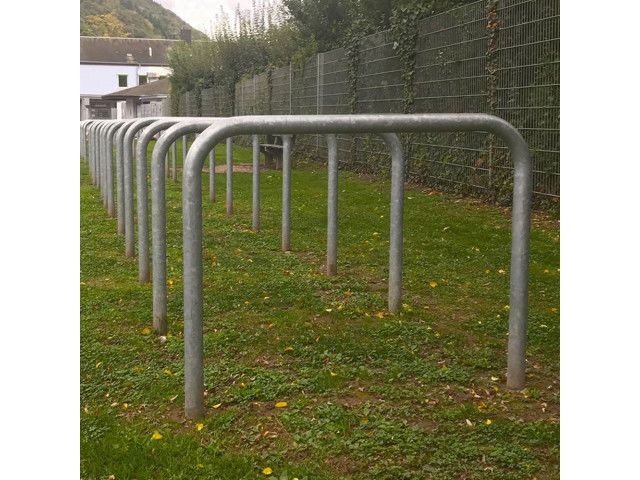

ABES Bicycle-Stand 470 is a bike rail made from a bent steel tube with a tube diameter of 48 mm. A knee rail, as well as other tube dimensions, heights and widths available upon request and at a surcharge. Mounting Concrete embedment Alternative: version with two flanges to enable screwing Finish – Stainless steel 1.4301 pickled and smoothed, grain 240. Optional: electropolished/high-gloss (no surcharge) – Steel ST37, galvanised with powder coating in standard RAL colours or DB 703 – Other colours available on request at a surcharge – Optionally with knee rail ABES Bicycle-Stand 470 overview: Bicycle Stand, steel ST37, galvanised/powder-coated or stainless steel 1.4301 – Bent steel tube with a tube diameter of 48 mm – Height above ground: 860 mm – Full height: 1.160 mm – Width: 860 mm

Technical features

Download the complete technical features
