512-FMS6141CSX

Passive harmonic filters

Ask for a quote Receive Documentation Contact the supplier

?) or dual (75 ?) load. DC-coupling the

output removes the need for output coupling capacitors.

The input DC level is offset approximately +280mV at

the output (see Application Information for details).

The FMS6141 Low-Cost Video Filter is intended to

replace passive LC filters and drivers with a low-cost

integrated device. The 4th-order filter provides improved

image quality compared to typical 2nd or 3rd-order

passive solutions.

The FMS6141 may be directly driven by a DC-coupled

DAC output or an AC-coupled signal. Internal diode

clamps and bias circuitry may be used if an AC-coupled

input is required (see Application Information for details).

The FMS6141’s output can drive an AC- or DC-coupled

single (150

OTHER PRODUCTS PASSIVE HARMONIC FILTERS FROM ON SEMICONDUCTOR

700-MAX7421EUA

700-MAX7421EUA

Ask for a quote

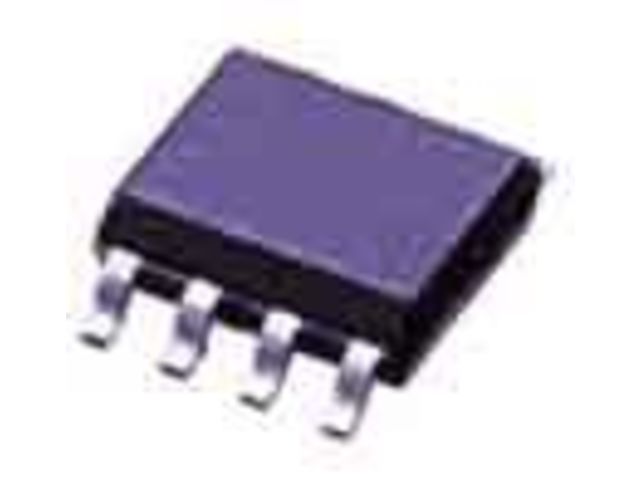

700-MAX7403ESA
