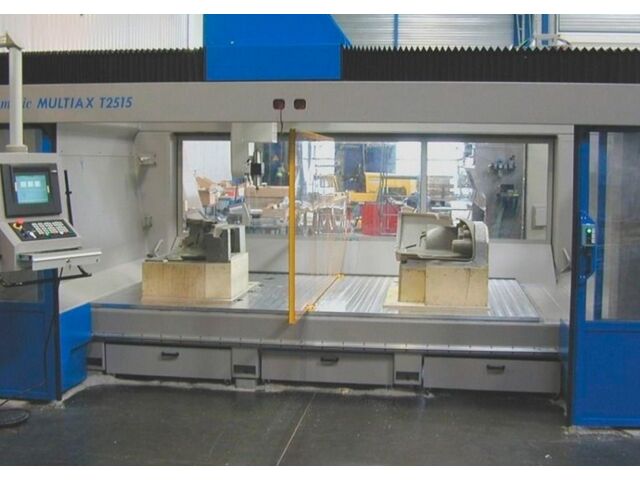

Fixed table, mobile gantry, 4 cartesian axes, 2 polar axes
The complete and versatile NormaProfil T series 5-axis CNC milling machine is optimized for machining large parts produced by thermoforming.
TECHNOLOGIES
-
Transmission by ball screw on the 4 Cartesian axes (X1, X2, Y, Z)
-

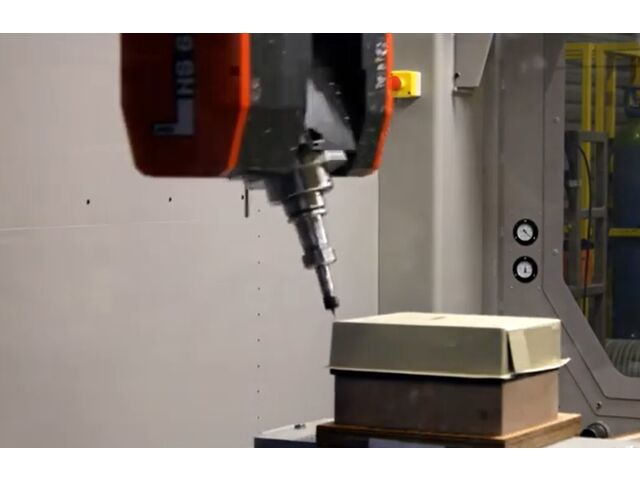

2 rotary axes (C: +/- 200 ° and A: +/- 200 ° depending on the electrospindle)
-
Many electrospindles available
The NormaProfil T series is optimized for workpiece machining in the following materials:
-
Plastic and composites
-
Synthetic resins
-
PU and PS foam
-
Wood and wood products
-
Aluminum
-
Brass and alloys
NC and MOTORIZATION
-
SIEMENS SINUMERIK digital control: X, Y, Z, C, A axes
STN 10.4 inch OP010 color screen.
Brushless motorization type 1FK7 with digital variators.
Air-conditioned electrical cabinet.
-
SIEMENS SINUMERIK digital control: X, Y, Z, C, A axes
STN 10.4 inch OP010 color screen.
Brushless motorization type 1FT6 with digital drives.
Air-conditioned electrical cabinet.
-
NUM numerical control: X, Y, Z, C, A axes
12 inch TFT flat screen.
MP03 operator panel.
BPH brushless motorization with digital variators.
Air-conditioned electrical cabinet.
MAIN CHARACTERISTICS
-
Speed in mm / sec: 650
-
Resolution in mm: +/- 0.05
-
Repeatability in mm: +/- 0.025 at 20 ° C
SOME OF THE POSSIBLE OPTIONS
-
Front and rear automatic doors
-

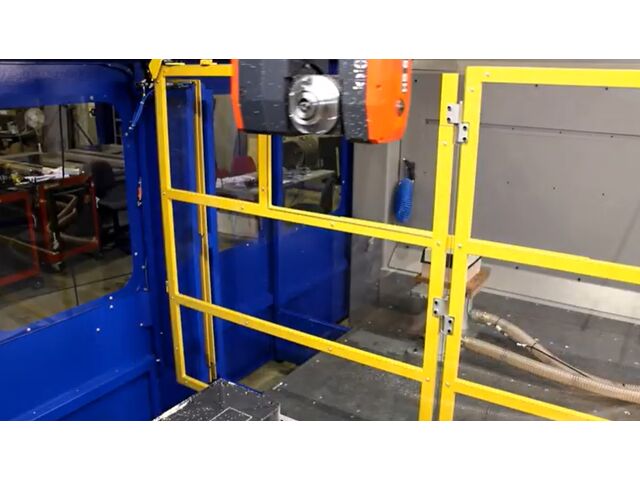

Movable partition for commuter work (manual or automatic)
-
Vacuum plate for holding parts or tools (vacuum technology by side channel turbines or by vacuum pump)
-
Static tool magazine (6,10,15 tools)
-
Tool measuring probe
-
Sound-absorbing full cover
-
