X3301 IR Multispectrum Flame detector

X3301 IR Multispectrum Flame detector - DET-TRONICS FRANCE

X3301 IR Multispectrum Flame detector -

X3301 IR Multispectrum Flame detector - produit présenté par DET-TRONICS FRANCE

X3301 IR Multispectrum Flame detector

“ - Single detector for multiple hydrocarbon fuels - Low cost of coverage - Ability to detect smaller fires earlier - Solid cone of vision to 100 feet for methane - Better detection zoning capability - Best combination of flame detection and false alarm rejection - Low maintenance costs - Reliable fault diagnostics - Suitable for heavy industrial applications - Explosion/flame proof (Ex d) or increased safety installations (Ex d e) in hazardous locations ”

Ask for a quote

Presentation

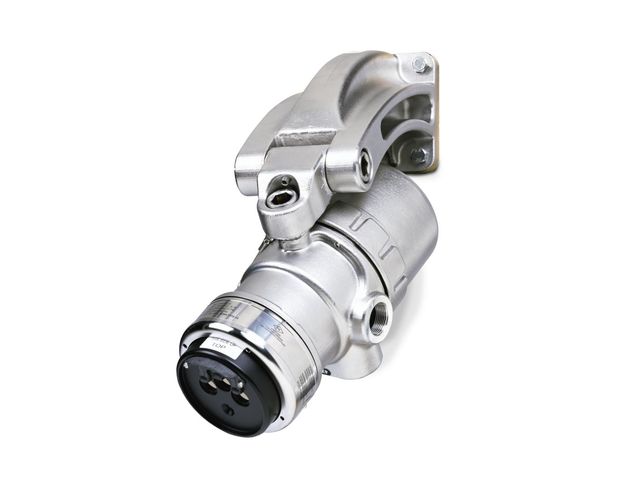

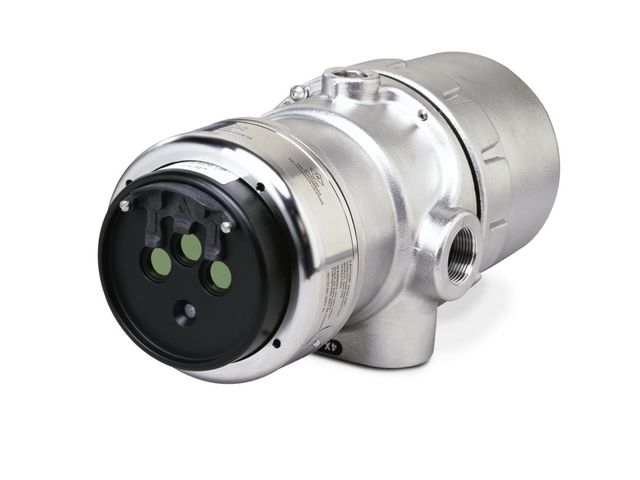

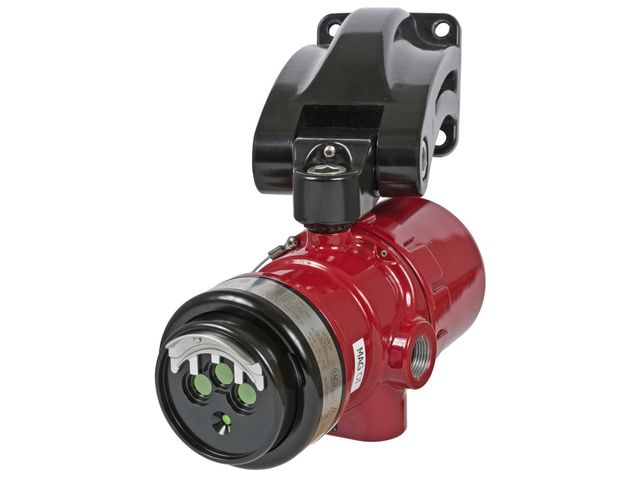

The X3301 Multispectrum IR Flame Detector is the future generation detector for performance and technology.

The detector uses signal processing algorithms, supported by an embedded 32-bit microprocessor, to provide continuous protection in the presence of false alarm sources where hydrocarbon fires and infrared radiation exist. It is suitable for indoor and outdoor applications thatrequire the highest level of false alarm rejection and fire detection
performance.

The detector is available in aluminum (painted) or stainless steel (316/CF8M cast) for installation in the harshest
environments. The X3301 has a detection range to a 1 x 1 foot (0.3 x 0.3 m) n-Heptane fire at 210 feet, and a solid cone of vision for methane fire. The detector features standard fire alarm, fault and auxiliary relays, with an isolated 0 to 20 mA output model with optional HART communication.
The X3301 provides superior performance in applications that are at the extremes, and where background infrared radiation is a normal condition:

— Hangars
— Offshore production platforms
— Offshore production ships
— Refineries
— Production facilities
— Loading racks
— Compressor stations
— Turbine enclosures
— Airport water curtains
— Automotive Painting
— LNG/LPG
— Gas Separation Plants
— Warehousing
— Marine
