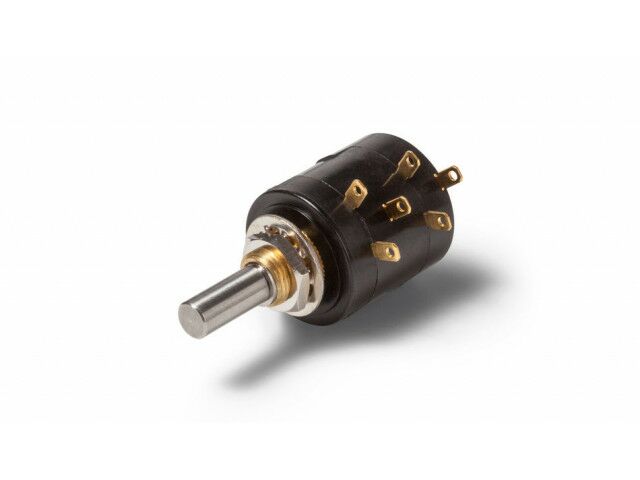

Wire-wound potentiometer - RP19/20

The RP19/20 potentiometers in Ø22mm housings are suitable for applications where an accurate and compact sensor with a large electrically effective angle of rotation is required.
The RP19/20 potentiometer series (RP19 with mechanical end stop) is an all-rounder that can be adapted to a wide range of applications and is often used as a feedback sensor in valve control systems. The sensor also offers good accuracy. The radial gold-plated connection pins are suitable for flat connectors (2.8 mm according to DIN 46247 part 3).

Accurate wirewound potentiometer
With or without mechanical end stop (320° / 360°)
High electrically effective angle of rotation 355° ±5°
Compact sensor with 12 mm installation depth
With many options
Options:

Front shaft sealing
Front shaft adjustment
Screwdriver slot
Improved Linearity
Improved resistance tolerance
Back shaft
Center tap
Tandem version
Note: The versions RP19 with stop are also used as manual control

Many adaptations are available on request: Multi-ganged potentiometers, sealed housings, special electrical and mechanical rotation angles and special resistance and linearity tolerances. We can also mount gears, attach cable assemblies with or without connectors, and much more. Please use our enquiry form to describe your application so that we can determine the optimum product for your design-in.
