Wheels for industrial trailers Wicke-ELASTIC® black : Serie GG LLAK / BBAK - 160–1250 kg

Wheels for industrial trailers Wicke-ELASTIC® black : Serie GG LLAK / BBAK - 160–1250 kg - WICKE FRANCE

Wheels for industrial trailers Wicke-ELASTIC® black : Serie GG LLAK / BBAK - 160–1250 kg - Other wheels and rollers for handling

Wheels for industrial trailers Wicke-ELASTIC® black : Serie GG LLAK / BBAK - 160–1250 kg

Other wheels and rollers for handling

Ask for a quote

Presentation

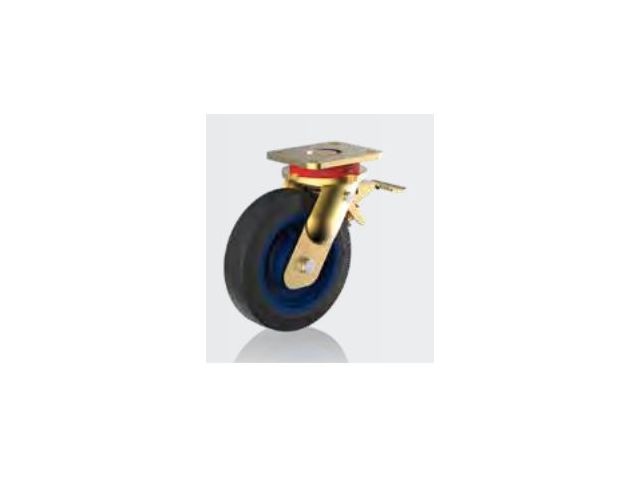

Swivel forks with LLAK series top plate are made in heavy duty welded steel construction. The swivel head is equipped with a precision axial ball bearing (DIN 711/ISO 104) and a tapered roller bearing (DIN 720/ISO 355). Although the bearings are greased for life, they can be additionally greased with the grease nipple. The swivel head and the yoke are bolted and secured by a cross-linking, the swivel fork is yellow chromatised.

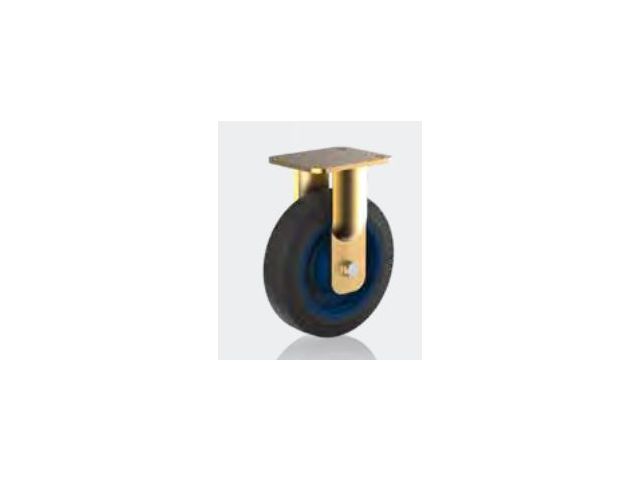

Wheels of the series GG are made of a high quality grey cast iron centre with a vulcanised / pressed on black Wicke-ELASTIC® rubber tyre. The tyres are available in either free running quality with a shore hardness of 63 Shore A or in drive wheel quality with a shore hardness of 73 Shore A. The wheels are supplied with ball bearings.
